SELECT A DIAGRAM

01 - Cooktop Parts

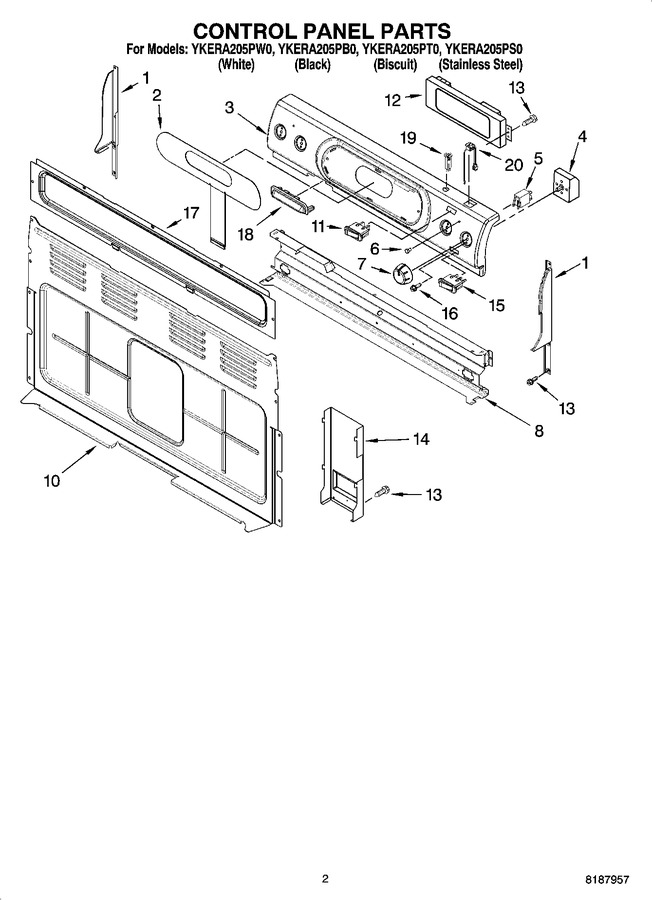

02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer & Broiler Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9756958		Endcap (white Right Hand)		Appelez-nous	-
1	9756963		Endcap (biscuit Left Hand)		Appelez-nous	-
1	9756959		Endcap (white Left Hand)		Appelez-nous	-
1	9756962		Endcap (biscuit Right Hand)		Appelez-nous	-
1	9756961		Endcap (black Left Hand)		Appelez-nous	-
1	9756960		Endcap (black Right Hand)		Appelez-nous	-
2	9758379		Membrane Switch (biscuit)		Appelez-nous	-
2	9758380		Membrane Switch (stainless Steel)		Appelez-nous	-
2	9758381		Membrane Switch (white)		Appelez-nous	-
2	9758378		Membrane Switch (black)		Appelez-nous	-
3	9756738		Panel, Backguard (biscuit)		Appelez-nous	-
3	9756737		Panel, Backguard (black)		Appelez-nous	-
3	9756740		Panel, Backguard (white)		Appelez-nous	-
3	9756739		Panel, Backguard (stainless Steel)				$ 158.48
4	WP3148952		Switch, Infinite (lr (yellow))   (Replaces: 3148952)			Immediately	$ 69.51
4	WP9757030		Switch, Infinite (lf/rr (dual))   (Replaces: 9757030)			Immediately	$ 137.77
4	5500-287		Switch, Infinite (rf (green))   (Replaces: 3148953)			Immediately	$ 52.39
5	WP8523266		Light, Indicator   (Replaces: 8523266)				$ 117.50
6	WP3196068		Lens, Light (2)   (Replaces: 3196068)			Immediately	$ 6.26
7	9756942		Knob (4) (biscuit)				$ 67.41
7	9756941		Knob (4) (white)				$ 23.82
7	9756943		Knob (4) (black)				$ 20.88
7	9756944		Knob (4) (cashmere Metalic)				$ 37.52
8	9756934		Shield, Heat		Appelez-nous	-
10	9756999		Cover, Rear		Appelez-nous	-
11	9757407WH		Switch, Simmer (white)		Appelez-nous	-
11	WPW10163899		Switch, Simmer (black)   (Replaces: 9757407BL)				$ 93.86
11	WPW10163899		Switch, Simmer (cashmere Metalic)   (Replaces: 9757407CM)				$ 93.86
11	WPW10163899		Switch, Simmer (biscuit)   (Replaces: 9757407BT)				$ 93.86
12	9759566		Control, Range		Appelez-nous	-
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
14	9757972		Cover, Box		Appelez-nous	-
15	9757406CM		Switch, Warming (cashmere Metalic)		Appelez-nous	-
15	9757406BT		Switch, Warming (biscuit)		Appelez-nous	-
15	9757406WH		Switch, Warming (white)		Appelez-nous	-
15	WPW10163902		Switch, Warming (black)   (Replaces: 9757406BL)				$ 105.59
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
17	9758319		Cover, Rear (console)		Appelez-nous	-
18	9758353		Cover, Vent (biscuit)		Appelez-nous	-
18	9758352		Cover, Vent (white)		Appelez-nous	-
18	9758355		Cover, Vent (cashmere Metalic)				$ 107.58
18	9758354		Cover, Vent (black)		Appelez-nous	-
19	WP9757602		Breaker, 15amp (black)   (Replaces: 9757602)			Immediately	$ 53.81
19	WP9757601		Breaker, 15amp (white)   (Replaces: 9757601)			Immediately	$ 65.55
19	9757603		Breaker, 15amp (biscuit)				$ 5.84
19	WP9757604		Breaker, 15amp (architect Grey)   (Replaces: 9757604)			Immediately	$ 10.94
20	9757357		Receptacle (architect Grey)		Appelez-nous	-
20	9756358		Receptacle (white)		Appelez-nous	-
20	9756359		Receptacle (black)		Appelez-nous	-
20	9756360		Receptacle (biscuit)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
