01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:

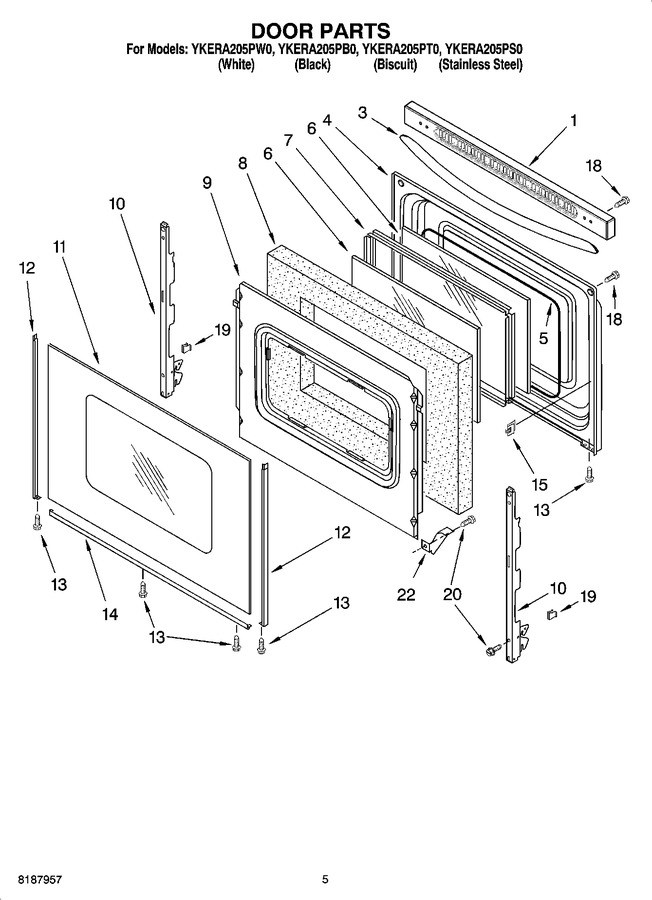

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9756965 | Trim, Door Top (white) |
|
- | |||||
| 1 | 9756967 | Trim, Door Top (black) |
|
- | |||||
| 1 | 9756966 | Trim, Door Top (biscuit) |
|
- | |||||
| 1 | 9756969 | Trim, Door Top (cashmere Metalic) |
|
- | |||||
| 3 | 9758293 | Handle, Door (white) |
|
- | |||||
| 3 | 9782649 | Handle, Door (stainless Steel) |
|
- | |||||
| 3 | 9758295 | Handle Door (biscuit) |
|
- | |||||
| 3 | 9758294 | Handle Door, (black) |
|
- | |||||
| 4 | 3186292 | Liner, Door |
|
- | |||||
| 5 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 90.09 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 3186297) |
|
$ 233.31 | |||||
| 10 | WP8053807 | Hinge, Door (white, Black And Biscuit Models) (Replaces: 8053807) |
|
$ 101.17 | |||||
| 10 | 8272822 | Hinge, Door (stainless Model) |
|
$ 71.88 | |||||
| 11 | 9757041 | Glass, Outer Door (black) |
|
- | |||||
| 11 | 9757043 | Glass, Outer Door (stainless Steel) |
|
- | |||||
| 11 | 9757040 | Glass, Outer Door (biscuit) |
|
- | |||||
| 11 | WPW10118454 | Glass, Outer Door (white) (Replaces: 9757039) |
|
$ 324.91 | |||||
| 12 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 12 | WP8523166 | Trim, Side (white Right Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | WP8523172 | Trim, Side (white Left Hand) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12 | 9758358 | Trim, Side (cashmere Metalic, Left Hand) |
|
- | |||||
| 12 | 9758357 | Trim, Side (cashmere Metalic, Right Hand) |
|
- | |||||
| 12 | WP8523167 | Trim, Side (biscuit Right Hand) (Replaces: 8523167) |
|
$ 119.10 | |||||
| 12 | WP8523173 | Trim, Side (biscuit Left Hand) (Replaces: 8523173) |
|
$ 123.53 | |||||
| 12 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 14 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 14 | WP8523178 | Trim, Lower (biscuit) (Replaces: 8523178) |
|
$ 161.77 | |||||
| 14 | WP8523180 | Trim, Lower (stainless Steel) (Replaces: 8523180) |
|
$ 169.00 | |||||
| 15 | 3196025 | Clip, Glass (4) |
|
$ 20.10 | |||||
| 18 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 8.42 | ||||
| 19 | 3196925 | Clip, Door Stop |
|
$ 9.06 | |||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 22 | 3196794 | Bracket, Window (2) |
|
$ 24.34 |
