SELECT A DIAGRAM
01 - Cooktop Parts

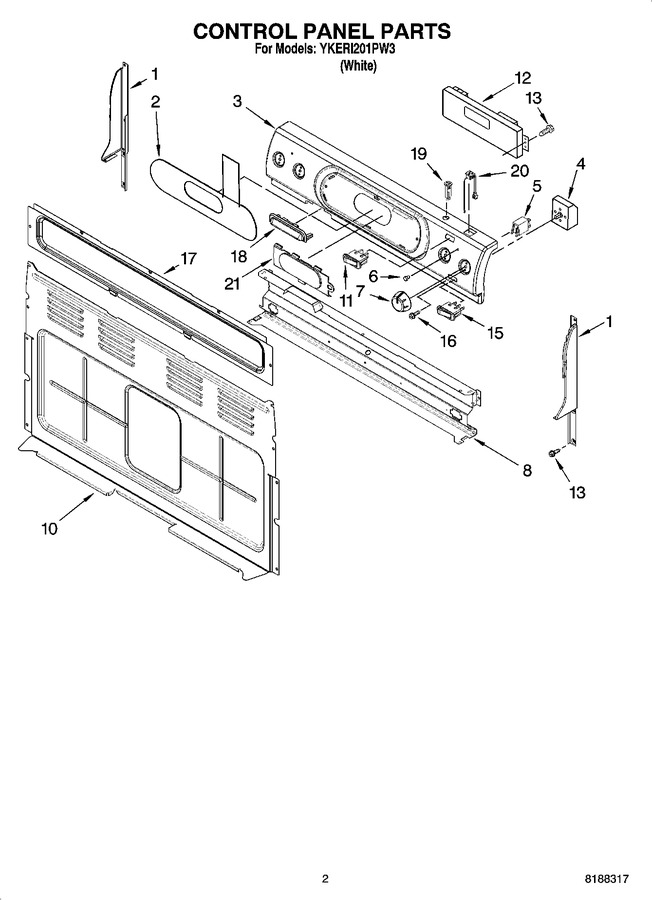

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9756959 | Endcap (left Hand) |
|
- | |||||
| 1 | 9756958 | Endcap (right Hand) |
|
- | |||||
| 2 | 9762096 | Membrane Switch |
|
$ 334.16 | |||||
| 3 | 9756722 | Panel, Backguard |
|
- | |||||
| 4 | WP3148952 | Switch, Infinite (lr (yellow)) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 4 | 5500-287 | Switch, Infinite (rf/rr (green)) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 4 | WP9757030 | Switch, Infinite (lf (dual)) (Replaces: 9757030) |
|
Immediately | $ 137.77 | ||||
| 5 | WP8523266 | Light, Indicator (Replaces: 8523266) |
|
$ 117.50 | |||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | 9756941 | Knob (4) |
|
$ 23.82 | |||||
| 8 | 9756934 | Shield, Heat |
|
- | |||||
| 10 | 9756999 | Cover, Rear |
|
- | |||||
| 11 | 9758366WH | Switch, Simmer |
|
- | |||||
| 12 | 9756547 | Control, Range |
|
$ 335.66 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 15 | 9757406WH | Switch, Warming |
|
- | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | 9758319 | Cover, Rear (console) |
|
- | |||||
| 18 | 9758352 | Cover, Vent |
|
- | |||||
| 19 | WP9757601 | Breaker, 15amp (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 20 | W10849725 | Receptacle (Replaces: 9758885) |
|
Immediately | $ 80.79 | ||||
| 21 | 9761077 | Membrane, Insert |
|
- |
