01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

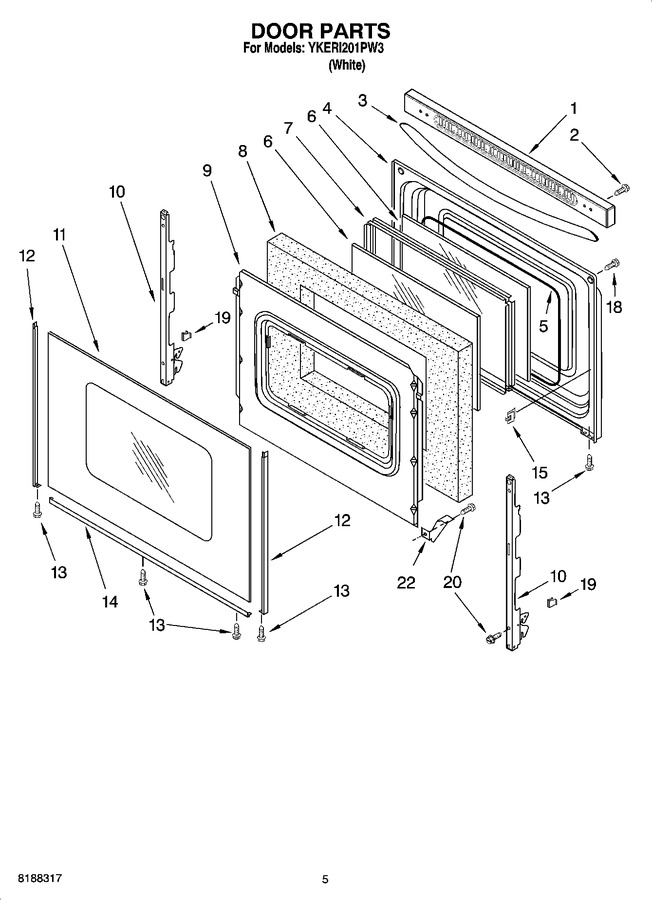

04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9756965 | Trim, Door Top |
|
- | |||||
| 2 | 8534065 | Screw |
|
$ 35.92 | |||||
| 3 | 9758293 | Handle, Door |
|
- | |||||
| 4 | 3186292 | Liner, Door |
|
- | |||||
| 5 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 90.09 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 3186297) |
|
$ 233.31 | |||||
| 10 | WP8053807 | Hinge, Door (Replaces: 8053807) |
|
$ 101.17 | |||||
| 11 | WPW10118454 | Glass, Outer Door (Replaces: 9762127) |
|
$ 324.91 | |||||
| 12 | WP8523166 | Trim, Side (right Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | WP8523172 | Trim, Side (left Hand) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 14 | W11594186 | Trim, Lower (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 15 | 3196025 | Clip, Glass (4) |
|
$ 20.10 | |||||
| 18 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 8.42 | ||||
| 19 | 3196925 | Clip, Door Stop |
|
$ 9.06 | |||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 22 | 3196794 | Bracket, Window (2) |
|
$ 24.34 |
