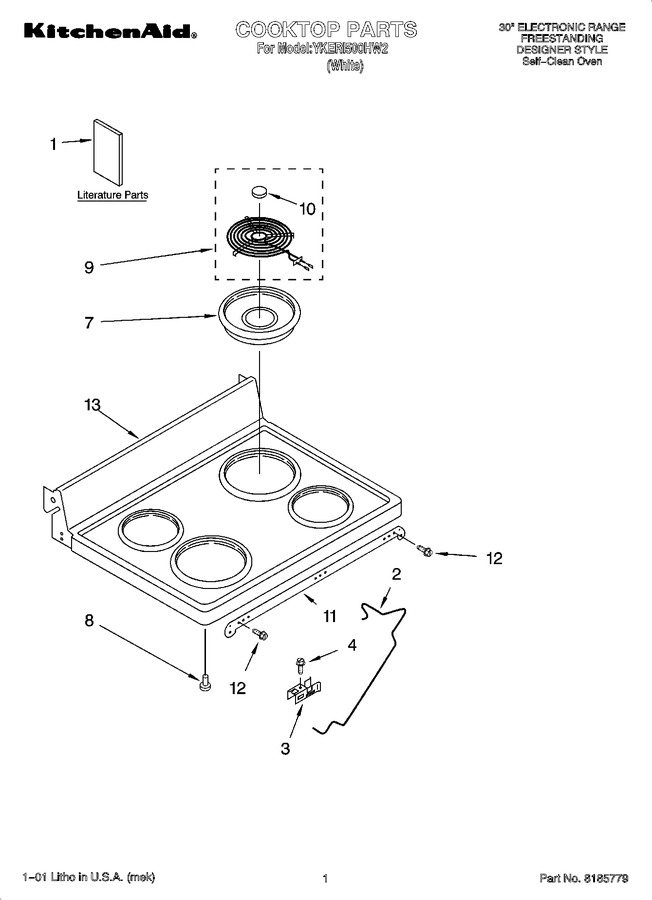

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Rear Chassis Parts


06 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9752777		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT9753844		Literature Parts (use & Care Guide (english))		Appelez-nous	-
1	LIT9753844F		Literature Parts (use & Care Guide (french))		Appelez-nous	-
1	LIT9753984		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
2	9751538		Cooktop Rod		Appelez-nous	-
3	9782013		Clip, Receptacle		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4   (Replaces: 9750891)				$ 8.30
7	WPW10290350		Drip Bowl (8``)   (Replaces: 3169205)			Immediately	$ 18.28
7	W10290353RW		Drip Bowl (6``)   (Replaces: 3169204)			Immediately	$ 24.97
8	238614		Bumper (2) White   (Replaces: 9750969)				$ 84.79
9	9782075		Element, Surface (coil, 6`` Lr (accu Simmer))		Appelez-nous	-
9	WPW10259868		Element, Surface (coil, 6`` Rf)   (Replaces: 9782074)			Immediately	$ 173.17
9	WPW10259865		Element, Surface (coil, 8`` Lf-rr)   (Replaces: 9782071)			Immediately	$ 144.20
10	4211952		Medallion, (4)		Appelez-nous	-
11	9780585		Wire Guard				$ 35.21
12	9780270		Screw, 8-18 X 3/8		Appelez-nous	-
13	9781989GW		Cooktop, Coil		Appelez-nous	-
