SELECT A DIAGRAM

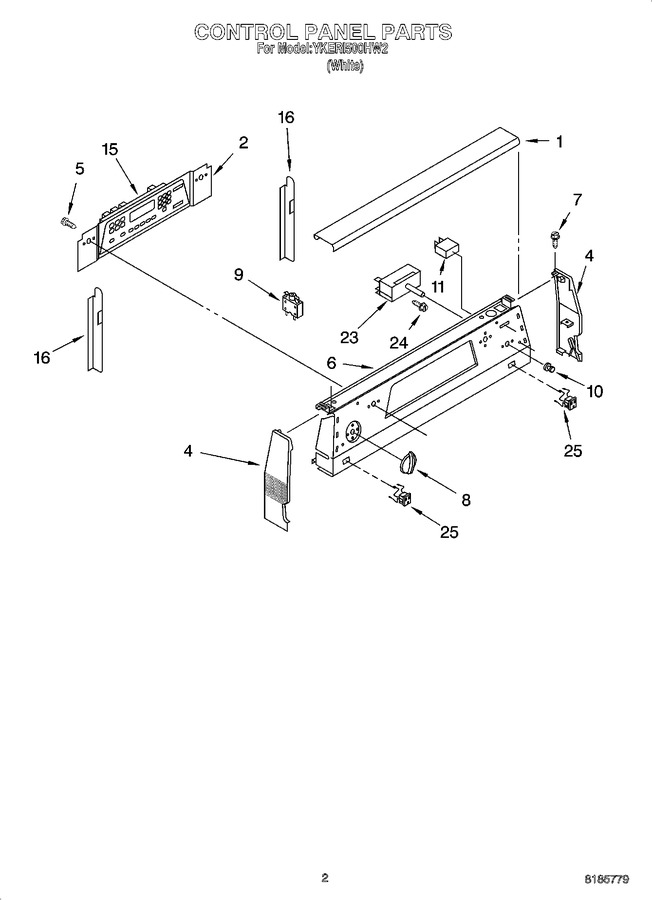

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Rear Chassis Parts


06 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9753156PW		Lamp Cover		Appelez-nous	-
2	9753690		Bracket, Timer		Appelez-nous	-
4	9750366FW		End Cap (left Hand)		Appelez-nous	-
4	9750367FW		End Cap (right Hand)		Appelez-nous	-
5	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
6	9753727PW		Panel, Control		Appelez-nous	-
7	9780852		Screw, 8-18 X 3/8		Appelez-nous	-
7	9754008		Insulation		Appelez-nous	-
8	WP9750372FW		Knobs, Control   (Replaces: 9750372FW)				$ 20.99
9	3191072		Breaker, 15 Amp		Appelez-nous	-
10	WP9750343		Indicator Lens   (Replaces: 9752589)			Immediately	$ 6.00
11	9753422		Light Module		Appelez-nous	-
15	9782086CW		Oven Control Assembly		Appelez-nous	-
16	9780655		Brace, Control Pnl		Appelez-nous	-
23	WP9750638		Infinite Switch (1400w, Lr-rf)   (Replaces: 9750638)			Immediately	$ 170.81
23	WP9750641		Infinite Switch (2400w, Lf-rr)   (Replaces: 9750641)			Immediately	$ 125.00
24	WP3400882		Screw, 8-32 X 7/32   (Replaces: 3400816)			Immediately	$ 7.55
25	9750995		Insulation, Panel		Appelez-nous	-
25	9751480FW		Outlet, Untimed		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
