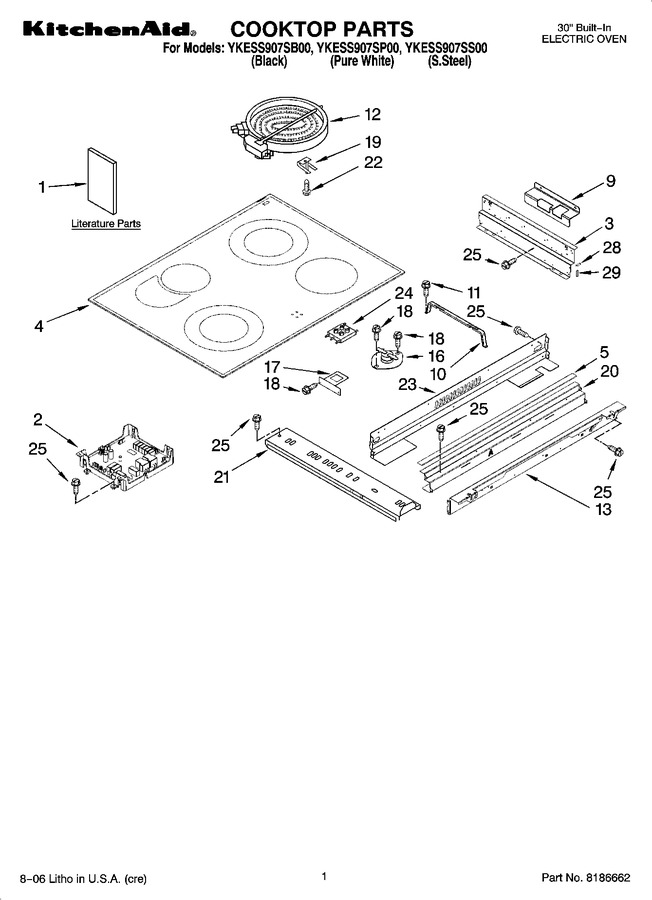

01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Door And Drawer Parts
05 - Internal Oven Parts
06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9763467 | Guide Easy Set |
|
- | |||||
| 1 | 9763461 | Installation Instructions |
|
- | |||||
| 1 | W10109440 | Use & Care Guide (english) |
|
- | |||||
| 1 | W10048890 | Use & Care Guide (french) |
|
- | |||||
| 1 | 9762786 | Tech Sheet (english) |
|
- | |||||
| 1 | W10065220 | Tech Sheet (french) |
|
- | |||||
| 1 | 9757680 | Anti-tip Instruct. |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 9761801 | Central, Appliance |
|
- | |||||
| 3 | 9761422 | Bracket, Mounting |
|
$ 67.87 | |||||
| 4 | W10110269 | Cooktop (white) |
|
- | |||||
| 4 | W10297306 | Cooktop (black) (Replaces: W10110271) |
|
$ 1,063.34 | |||||
| 5 | W10076020 | Gasket |
|
$ 50.99 | |||||
| 9 | 9757686 | Support (l.hand) |
|
$ 38.48 | |||||
| 9 | 9757687 | Support (r.hand) |
|
$ 38.36 | |||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 11 | WP4449809 | Screw (2) (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 12 | W10823692 | Element, Surface (2500/1200w (2)) (Replaces: 4453909) |
|
Immediately | $ 227.59 | ||||
| 12 | W10823698 | Element, Surface (1800w - Rr) (Replaces: 8523696) |
|
Immediately | $ 195.12 | ||||
| 12 | 8203525 | Element, Surface (1800/1000w) |
|
- | |||||
| 13 | 9761423 | Bracket, Front Support |
|
$ 43.33 | |||||
| 16 | WP9759944 | Thrmstat, 60c Spst (Replaces: 9759944) |
|
Immediately | $ 135.08 | ||||
| 17 | 9758799 | Bracket, Ind. Lamp |
|
$ 47.83 | |||||
| 18 | W10491985 | Screw (2) (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 19 | 9759094 | Spring, Locator |
|
$ 7.39 | |||||
| 20 | 9761768 | Bracket, Rear Sprt |
|
$ 73.35 | |||||
| 21 | 9757825 | Rail, Element (2) (center (1)) |
|
- | |||||
| 21 | 9763517 | Rail, Element (2) (side (3)) |
|
$ 62.80 | |||||
| 22 | WP486754 | Screw (Replaces: 246119) |
|
$ 8.01 | |||||
| 23 | 9761724 | Cover, Cktp Rear |
|
$ 35.73 | |||||
| 24 | 8523739 | Indicator Lamp, Hot Surface |
|
$ 120.71 | |||||
| 25 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 28 | W10050270 | Grommet (19mm) |
|
- | |||||
| 29 | W10050280 | Grommet (38mm) |
|
- |
