01 - Cooktop Parts

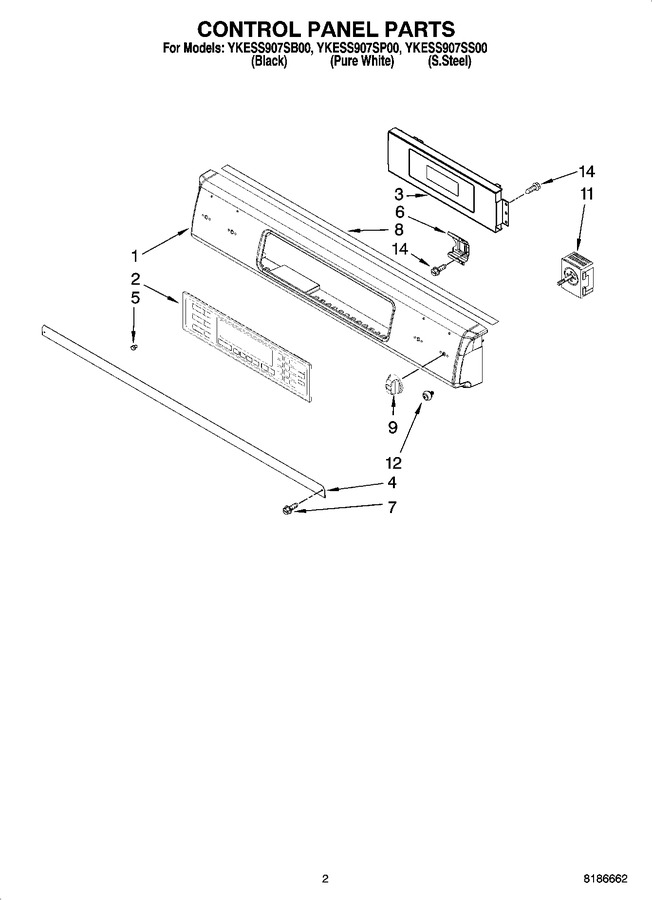

02 - Control Panel Parts
03 - Oven Parts
04 - Door And Drawer Parts
05 - Internal Oven Parts
06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10117024 | Control Panel (nickel Plated) |
|
$ 233.56 | |||||
| 1 | 9761550WH | Control Panel (white) |
|
- | |||||
| 1 | 9761550BL | Control Panel (black) |
|
- | |||||
| 2 | WP9761566 | Switch, Membrane (touchsensor Glas) (Replaces: 9761566) |
|
Immediately | $ 450.25 | ||||
| 3 | 9761799 | Control, Interface |
|
- | |||||
| 4 | W10105370 | Shield, Console |
|
$ 69.83 | |||||
| 5 | WP3196068 | Lens, Ind. (2) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 6 | 9761745 | Brkt, Touchsensor |
|
$ 40.75 | |||||
| 7 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 8 | W10110246 | Gasket |
|
$ 123.31 | |||||
| 9 | WPW10193255 | Knob (lf, Rr, Lr) (black) (Replaces: 9762764BL) |
|
$ 30.17 | |||||
| 9 | 9762764NP | Knob (lf, Rr, Lr) (nickel Plated) |
|
- | |||||
| 9 | WPW10193253 | Knob (lf, Rr, Lr) (white) (Replaces: 9762764WH) |
|
Immediately | $ 22.04 | ||||
| 9 | 9761780BL | Knob (rf) (black) |
|
- | |||||
| 9 | WPW10193257 | Knob (rf) (white) (Replaces: 9761780WH) |
|
Immediately | $ 21.78 | ||||
| 9 | 9761780NP | Knob (rf) (nickel Plated) |
|
- | |||||
| 11 | WP9763761 | Switch, Infinite (rf) (Replaces: 9763761) |
|
Immediately | $ 218.61 | ||||
| 11 | WP9763762 | Switch, Infinite (lf, Rr, Lr) (Replaces: 9763762) |
|
Immediately | $ 226.29 | ||||
| 12 | 9757778 | Bushing |
|
$ 97.63 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 |
