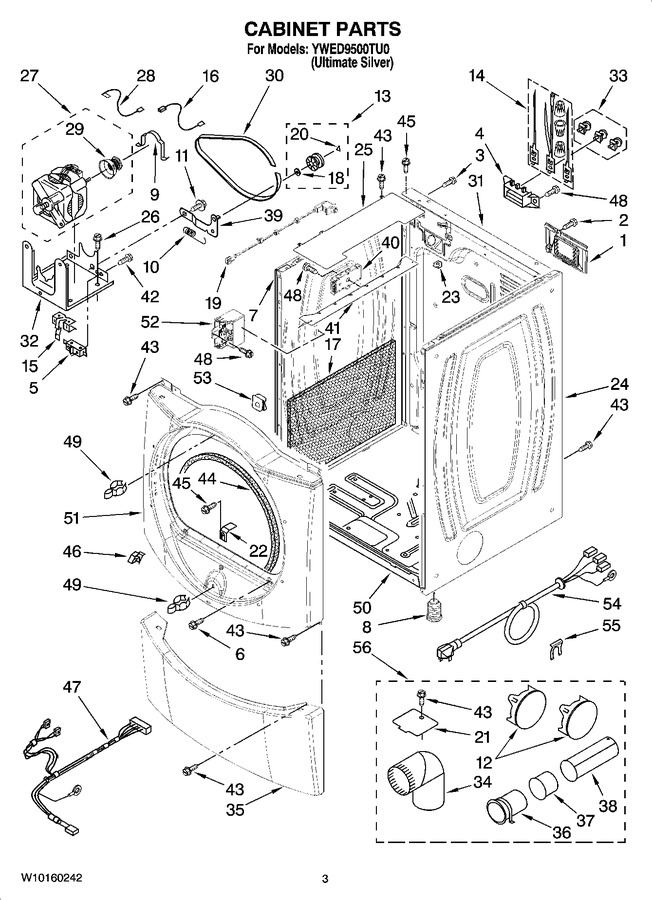

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10119283		Cover, Terminal Block   (Replaces: 8576583)				$ 134.77
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
3	W10850756		Screw, 10-32 X 5/8 (ground)   (Replaces: 8533974)				$ 8.20
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
7	W10138995		Panel, Side (l.h.)		Appelez-nous	-
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
8	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent   (Replaces: 8579117)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	279318		Terminal, Brass & Tinned (3) (includes Illus. 33)			Immediately	$ 106.04
15	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 34.77
16	3394081		Wire, Belt Switch				$ 37.57
17	W10128772		Sound Panel		Appelez-nous	-
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 8.36
19	W10128087		Assembly, Door Switch				$ 95.53
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 9.41
22	8529053		Ramp, Door				$ 51.37
23	WP692400		Nut, Push-in   (Replaces: 692400)			Immediately	$ 8.02
24	W10139009		Panel, Side (r.h.)		Appelez-nous	-
25	W10118470		Cover, Bracket Control		Appelez-nous	-
26	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
27	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 235.65
28	3398948		Wire, Jumper (broken Belt Switch)				$ 64.66
29	W10837625		Pulley, 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.77
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10133213		Panel, Rear		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
35	W10116277		Toe, Panel		Appelez-nous	-
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	W10141671		Control Board				$ 286.67
41	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 179.69
42	WP98129		Screw, 6/20 X 1 1/16   (Replaces: 98129)				$ 8.18
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
46	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
47	W10110990		Harness, Digital Interface		Appelez-nous	-
48	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
49	279570		Strike, Door(2)   (Replaces: 696144)			Immediately	$ 8.89
50	8519207		Base, Cabinet		Appelez-nous	-
51	W10084840		Front Panel		Appelez-nous	-
52	3407228		Power Cube				$ 128.68
53	62825		Clip-s Type				$ 8.11
54	W11095079		Power Cord   (Replaces: 8529008)			Immediately	$ 138.24
55	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 7.77
56	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (ultimate Silver)   (Replaces: 280171)			Immediately	$ 76.65
