01 - Top And Console Parts
02 - Cabinet Parts

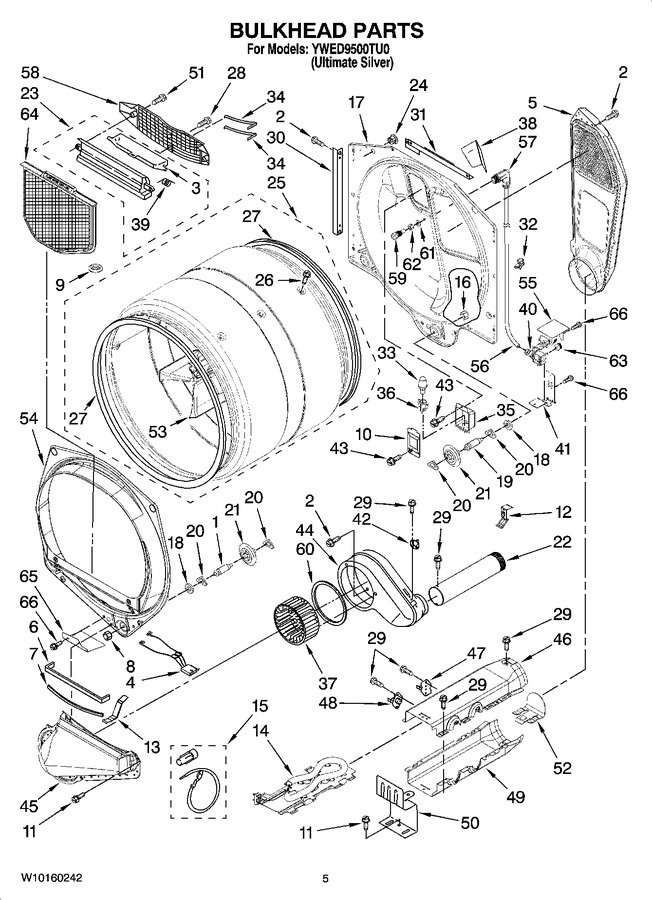

03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 213.91 | ||||
| 4 | WP3406653 | Harness, Sensor (Replaces: 3406653) |
|
Immediately | $ 159.56 | ||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 327.31 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 8 | W11812294 | Nut-3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | W10665050 | Cap-plug (Replaces: W10128544) |
|
$ 20.15 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 11 | WP489463 | Screw, 8-18 X 3/8 (Replaces: 489463) |
|
$ 8.25 | |||||
| 12 | W11684573 | Clip, Exhaust Pipe (Replaces: 8572105) |
|
$ 8.17 | |||||
| 13 | WP8066208 | Clip, Spring (Replaces: 8066208) |
|
$ 8.83 | |||||
| 14 | WP8544771 | Heater Element (Replaces: 8544771) |
|
Immediately | $ 119.29 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | W10124071 | Bulkhead, Rear |
|
- | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | 279936 | Exhaust Pipe (Replaces: 8563745) |
|
$ 154.18 | |||||
| 23 | W11129408 | Housing,outlet (Replaces: 3394985) |
|
Immediately | $ 53.28 | ||||
| 24 | 8529007 | Plug, Rear Bulkhead |
|
$ 78.87 | |||||
| 25 | W10545924 | Complete Drum Assembly (Replaces: W10113138) |
|
$ 456.81 | |||||
| 26 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
Immediately | $ 8.80 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 28 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 8.28 | ||||
| 29 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 30 | 8519221 | Channel Bracket, Rear Bulkhead (2) |
|
- | |||||
| 31 | W10118337 | Bracket, Upper Rear Bulkhead (Replaces: 8571651) |
|
- | |||||
| 32 | WP3391018 | Cable-tie (Replaces: 3391018) |
|
$ 33.43 | |||||
| 33 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | 3977373 | Bracket, Drum Light |
|
$ 111.08 | |||||
| 36 | W11700522 | Socket Assembly (Replaces: W10136369) |
|
$ 76.81 | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 59.07 | ||||
| 38 | W10044616 | Cover, Drum Light |
|
- | |||||
| 39 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 93.47 | |||||
| 40 | W10044596 | Valve, Water Inlet (includes Items 41, 55, 63 & 66) |
|
- | |||||
| 41 | W10044597 | Bracket-valve |
|
- | |||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 43 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 44 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 106.79 | |||||
| 45 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 217.48 | |||||
| 46 | WP8544769 | Housing Slot Heater Box (Replaces: 8544769) |
|
$ 173.90 | |||||
| 47 | 280148 | Thermal Cut-off, Kit (includes Illus. 48) |
|
Immediately | $ 54.61 | ||||
| 48 | WP8557403 | Thermostat 295 F (146 C) (hi-limit) (Replaces: 8557403) |
|
Immediately | $ 79.75 | ||||
| 49 | 8544770 | Housing Tab Heater Box |
|
$ 75.92 | |||||
| 50 | 8066099 | Bracket, Heater Box |
|
$ 26.81 | |||||
| 51 | WP3387230 | Screw, 10-16 X 1 (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 52 | 8544776 | Flange, Heater Box |
|
$ 19.01 | |||||
| 53 | W11782150 | Baffle, Drum (Replaces: W10113136) |
|
Immediately | $ 95.57 | ||||
| 54 | 8519245 | Bulkhead, Front (includes Illus. 65 & 66) |
|
- | |||||
| 55 | W10815373 | Cover, Inlet Valve (Replaces: W10044617) |
|
Immediately | $ 125.57 | ||||
| 56 | W10044598 | Hose (not Servicable Included With Illus. 57) |
|
- | |||||
| 57 | W10179730 | Nozzle & Hose Assembly (includes Items. 59, 61, 62 & 67) |
|
$ 121.56 | |||||
| 58 | W11086603 | Grill, Outlet (Replaces: 8299979) |
|
Immediately | $ 36.90 | ||||
| 59 | W10044629 | Nozzle & Screen Assembly |
|
$ 154.07 | |||||
| 60 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 61 | W10044579 | Washer, Nozzle |
|
$ 9.22 | |||||
| 62 | W10044628 | Nut, Brass 9/16-24 X 1/32 (Replaces: W10044580) |
|
$ 97.27 | |||||
| 63 | W10859554 | Coupling, Hose (Replaces: W10044605) |
|
$ 86.06 | |||||
| 64 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 67.16 | |||||
| 65 | W11257251 | Shield, Blower Housing (includes Item, 2) (Replaces: W10128629) |
|
$ 72.06 | |||||
| 66 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 |
