SELECT A DIAGRAM

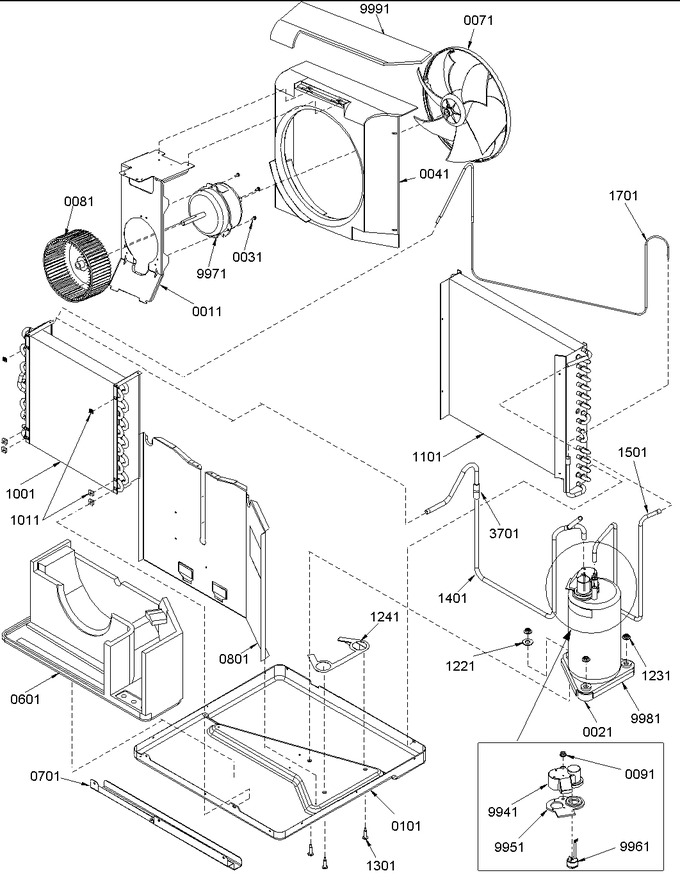

01 - Chassis Assembly


02 - Chassis Assembly


03 - Control Assembly


04 - Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	20053906		Bracket, Fan		Appelez-nous	-
21	C6466001		Grommet		Appelez-nous	-
31	WP308544		Screw-tap-r   (Replaces: M0254830)			Immediately	$ 8.30
41	20051203		Shroud-condenser		Appelez-nous	-
71	20109601		Fan, Condenser		Appelez-nous	-
81	20109701		Wheel, Blower		Appelez-nous	-
91	A9036601		Nut		Appelez-nous	-
101	20053703		Basepan		Appelez-nous	-
601	20055303		Scroll, Blower Btm		Appelez-nous	-
701	Y20055201		Rail-bottom		Appelez-nous	-
801	20053806		Panel, Partition		Appelez-nous	-
1001	20113103		Assy, Evaporator Coil		Appelez-nous	-
1011	M0586001		Screw		Appelez-nous	-
1101	20113204		Assy, Condensor		Appelez-nous	-
1221	20113001		Washer		Appelez-nous	-
1231	20112901		Nut, Palnut		Appelez-nous	-
1241	20099501		Protector, Basepan		Appelez-nous	-
1301	20109101		Bolt, Shoulder		Appelez-nous	-
1401	20121301		Weld, Suction		Appelez-nous	-
1501	20119301		Tube, Discharge		Appelez-nous	-
1701	20121501		Capillary Assy.		Appelez-nous	-
3701	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
9941	C6470701		Cover Terminal		Appelez-nous	-
9951	B1434901		Gasket, Term. Cover		Appelez-nous	-
9961	D6961667		Overload		Appelez-nous	-
9971	20109902		Motor-fan		Appelez-nous	-
9981	11101506		Comp-tc Rga5492exa		Appelez-nous	-
9991	20076902		Insulation, Shroud		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
