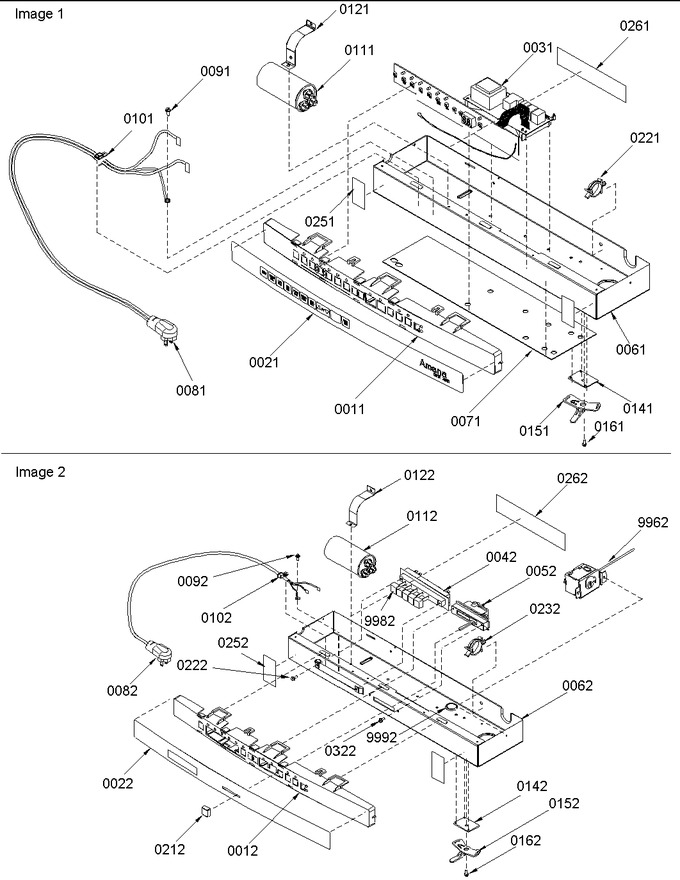

SELECT A DIAGRAM

01 - Chassis Assembly


02 - Chassis Assembly


03 - Control Assembly


04 - Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	20052801		Housing, Control		Appelez-nous	-
21	Y20057701		Overlay, Qz (portable)		Appelez-nous	-
31	20103504		Board,p.c. Control		Appelez-nous	-
61	Y20054601		Box-control		Appelez-nous	-
71	20069801		Insul, Closed Cell Foam		Appelez-nous	-
81	Y20057501		Cord, Power		Appelez-nous	-
91	M0227803		Screw		Appelez-nous	-
101	M0103902		Clamp, Speed		Appelez-nous	-
111	D6789062		Capacitor, Round		Appelez-nous	-
121	C6300511		Strap, Capacitor		Appelez-nous	-
141	20050701		Blocking, Indexing Vent		Appelez-nous	-
151	20050801		Lever-control, Vent		Appelez-nous	-
161	M0245104		Screw-sm		Appelez-nous	-
221	M0118702		Clip-guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
