View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts

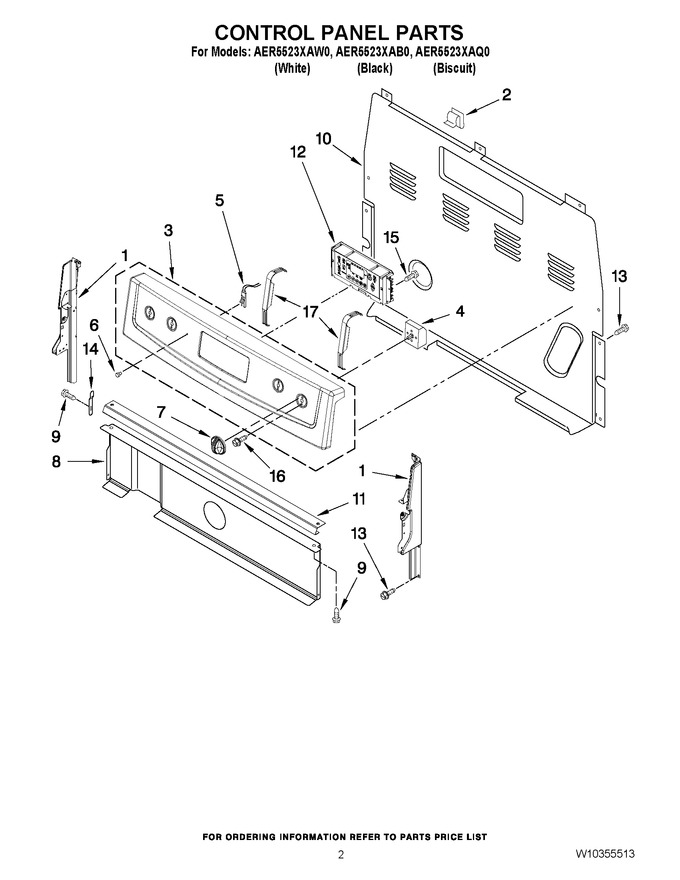

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11230611 | Endcap (biscuit Left Hand) (Replaces: W10184435) |
|
- | |||||
| 1 | W11230612 | Endcap (biscuit Right Hand) (Replaces: W10184436) |
|
- | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 2 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 | |||||
| 3 | W10170009 | Panel Control (white) |
|
$ 63.14 | |||||
| 3 | W10320991 | Panel, Control (biscuit) |
|
- | |||||
| 3 | W10320994 | Panel, Control (black) |
|
- | |||||
| 4 | WP3148952 | Switch, Infinite (right Front) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 4 | WP3149400 | Switch, Infinite (right Rear) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W10119707 | Knob, Infinite (biscuit) |
|
- | |||||
| 7 | W10119705 | Knob, Infinite (white) |
|
Immediately | $ 53.17 | ||||
| 7 | W10119706 | Knob, Infinite (black) |
|
$ 52.90 | |||||
| 8 | 8053912 | Shield, Heat |
|
$ 34.55 | |||||
| 9 | 3196166 | Screw |
|
$ 7.36 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Brkt-mntg, Console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 12 | W10271729 | Control, Range (white) |
|
- | |||||
| 12 | W10320992 | Control, Range (biscuit) |
|
- | |||||
| 12 | W10271730 | Control, Range (black) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 15 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | W11230932 | Brkt, Mntg Eoc (Replaces: W10138683) |
|
Immediately | $ 84.81 |
