01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts

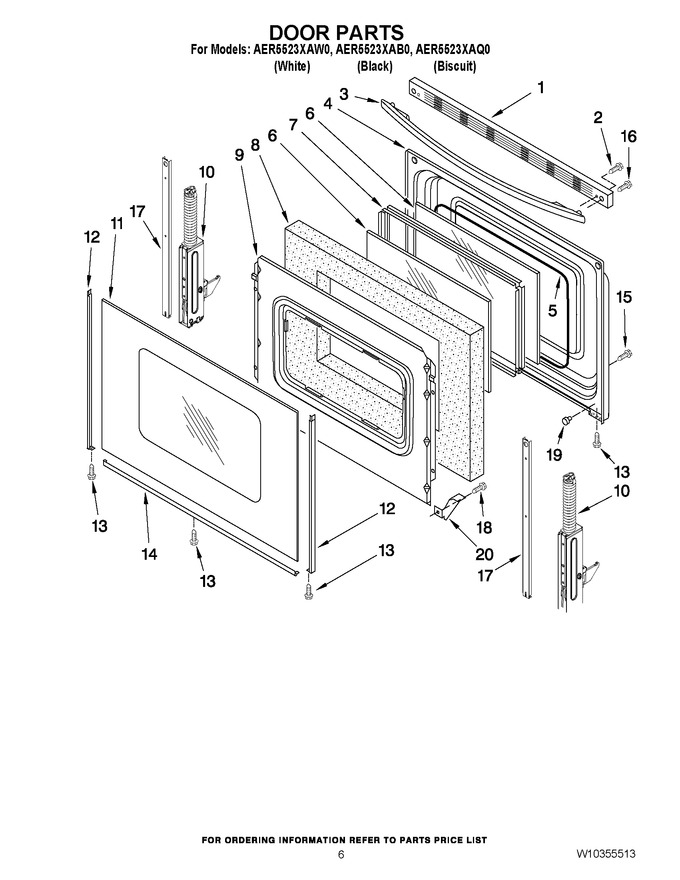

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10016380 | Trim, Top (black) |
|
$ 80.76 | |||||
| 1 | W10016370 | Trim, Top (white) |
|
$ 79.85 | |||||
| 1 | W10016450 | Trim, Top (biscuit) |
|
$ 81.21 | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 11.03 | ||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: W10202216) |
|
$ 370.67 | |||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: W10202217) |
|
$ 270.65 | |||||
| 3 | W10202218 | Handle, Door (biscuit) |
|
$ 101.67 | |||||
| 4 | 9761340 | Liner-door |
|
$ 361.12 | |||||
| 5 | 8522415 | Seal, Window |
|
$ 75.50 | |||||
| 6 | WP9758164 | Glass, Inner (Replaces: 9758164) |
|
$ 159.93 | |||||
| 7 | 3186290 | Frame, Glass |
|
- | |||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 101.37 | ||||
| 9 | 9761499 | Retainer, Insul. |
|
$ 325.33 | |||||
| 10 | WPW10299224 | Hinge, Door (active) (Replaces: W10299224) |
|
Immediately | $ 73.47 | ||||
| 10 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 11 | 9762478 | Glass, Outer (biscuit) |
|
- | |||||
| 11 | WP9762476 | Glass, Outer (white) (Replaces: 9762476) |
|
$ 332.66 | |||||
| 11 | WP9762477 | Glass, Outer (black) (Replaces: 9762477) |
|
$ 330.12 | |||||
| 12 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 12 | WP8523173 | Trim, Side (biscuit Right Hand) (Replaces: 8523173) |
|
$ 123.53 | |||||
| 12 | WP8523172 | Trim, Side (white Right Hand) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12 | WP8523166 | Trim, Side (white Left Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | WP8523167 | Trim, Side (biscuit Left Hand) (Replaces: 8523167) |
|
$ 119.10 | |||||
| 12 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 14 | WP8523178 | Trim, Lower (biscuit) (Replaces: 8523178) |
|
$ 161.77 | |||||
| 14 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 16 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 17 | W11502236 | Strap Door (Replaces: W10113759) |
|
Immediately | $ 27.68 | ||||
| 18 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 19 | 238614 | Bumper, Door (Replaces: 3195809) |
|
$ 84.79 | |||||
| 20 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 |
