01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

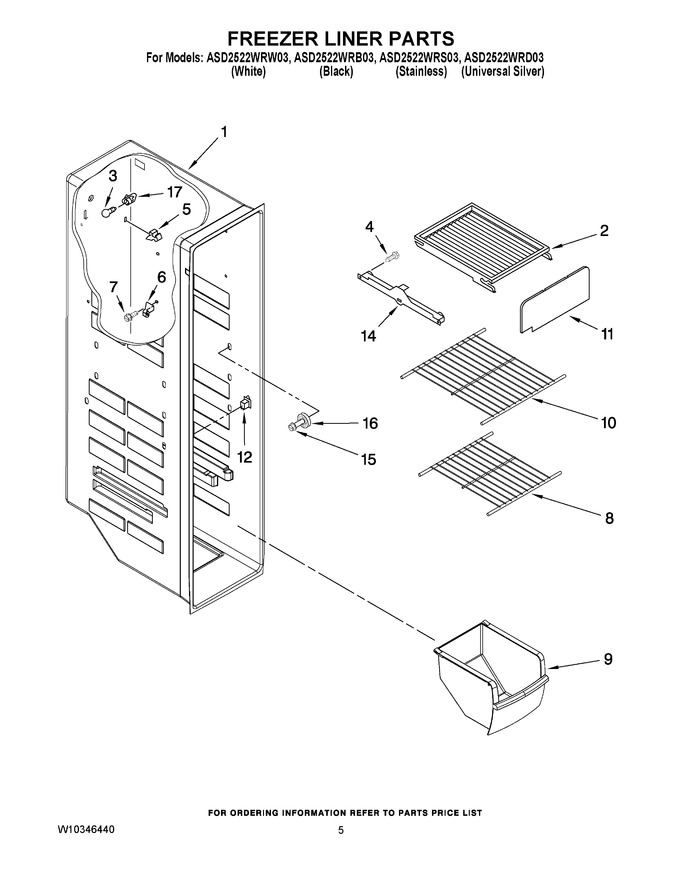

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Asevice Able Part)		Appelez-nous	-
2	2171714		Shelf, Top Compartment		Appelez-nous	-
3	W11679940		Light Bulb   (Replaces: W10311505)			Immediately	$ 11.30
4	718257		Screw   (Replaces: 489100)		Appelez-nous	-
5	2215823		Clip, Air Duct (2)   (Replaces: 2315163)				$ 10.42
6	2196206		Support, Stud (4)		Appelez-nous	-
7	W10142289		Screw   (Replaces: 3400893)				$ 9.15
8	WP2174267		Shelf, Wire   (Replaces: 2174267)				$ 88.90
9	WP2182971		Freezer Bin   (Replaces: 2182971)				$ 140.21
10	2174268		Shelf, Wire				$ 38.12
11	WP2171713		Door, Ice Compt   (Replaces: 2171713)				$ 87.27
12	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
14	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
14	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
15	W10191952		Screw				$ 5.65
16	W11527119		Stud Assembly (4)   (Replaces: W10173127)		Appelez-nous	-
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
