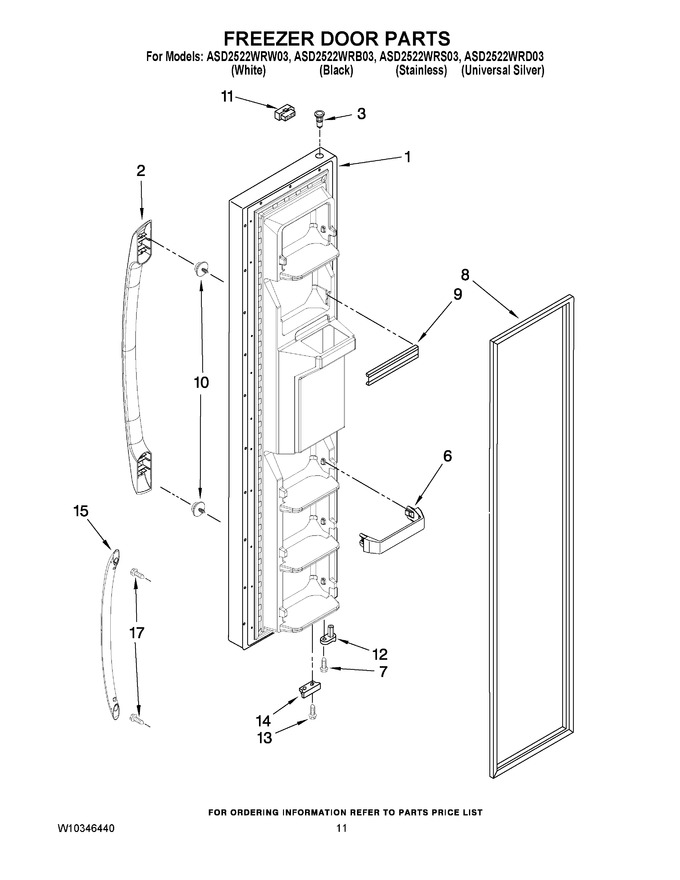

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10204968B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10314945		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10307168		Freezer Door (includes Item 8 And Dispenser Front Parts) (universal Silver)		Appelez-nous	-
1	W10204968W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10119666		Handle (white)				$ 104.36
2	WPW10119668		Handle (black)   (Replaces: W10119668)				$ 189.04
3	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.76
6	WP2309718		Trim, Door (4)   (Replaces: 2309718)				$ 58.56
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159074		Door Gasket, Magnetic (white)   (Replaces: 2221303)				$ 310.19
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307490)			Immediately	$ 23.11
10	WPW10288153		Screw   (Replaces: 2326016)			Immediately	$ 8.69
11	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	W10185567		Bracket, Door Stop (black)		Appelez-nous	-
14	W10185566		Bracket, Door Stop (zinc)		Appelez-nous	-
15	W11690159		Handle For Stainless Model   (Replaces: W10136871)				$ 165.49
17	WPW10170540		Stud Screw   (Replaces: W10170540)			Immediately	$ 8.51
