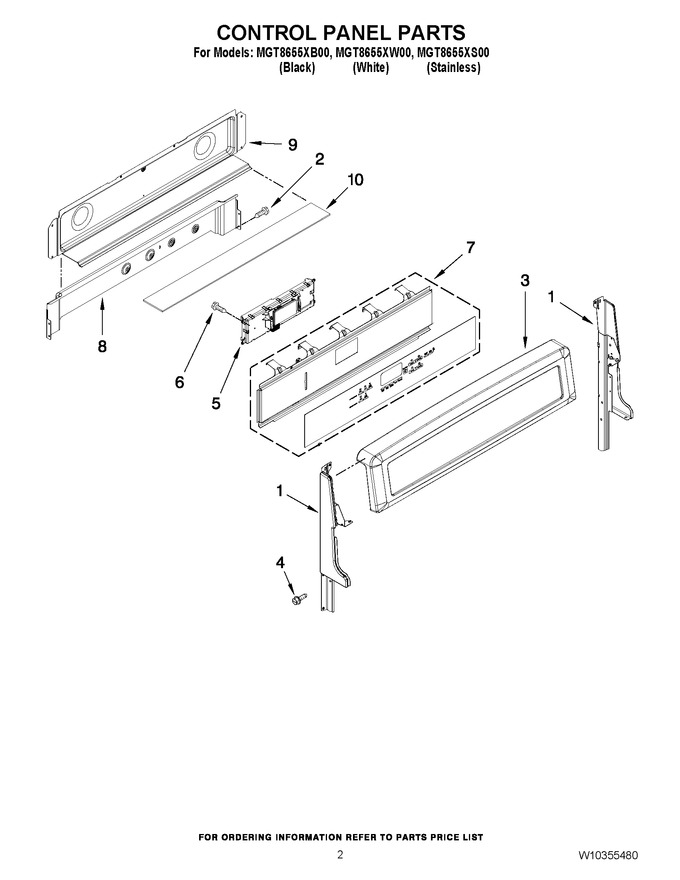

02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack And Element Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black, Left)				$ 92.84
1	W10319111		Support, Backguard (black, Right)				$ 43.80
1	W10319110		Support, Backguard (white, Left)				$ 95.95
1	W10319112		Support, Backguard (white, Right)				$ 93.79
2	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
3	W10097280		Console (black)				$ 119.25
3	W10097270		Console (white)				$ 118.50
3	W10097310		Console (stainless)				$ 116.84
4	WP98008545		Screw   (Replaces: 7101P633-60)				$ 18.60
5	WPW10365420		Electric, Control   (Replaces: W10293886)				$ 409.23
6	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
7	W10297178		Assy., Membrane (incl. Bracket) (stainless)				$ 275.46
7	W10297177		Assy., Membrane (incl. Bracket) (black)		Appelez-nous	-
7	W10321791		Assy., Membrane (incl. Bracket) (white)		Appelez-nous	-
8	W10278697		Shield, Vent			Immediately	$ 183.33
9	W10296773		Cover, Backguard Cover				$ 194.52
10	W11684874		Insulation, Wire Cover   (Replaces: W10309232)				$ 35.56
