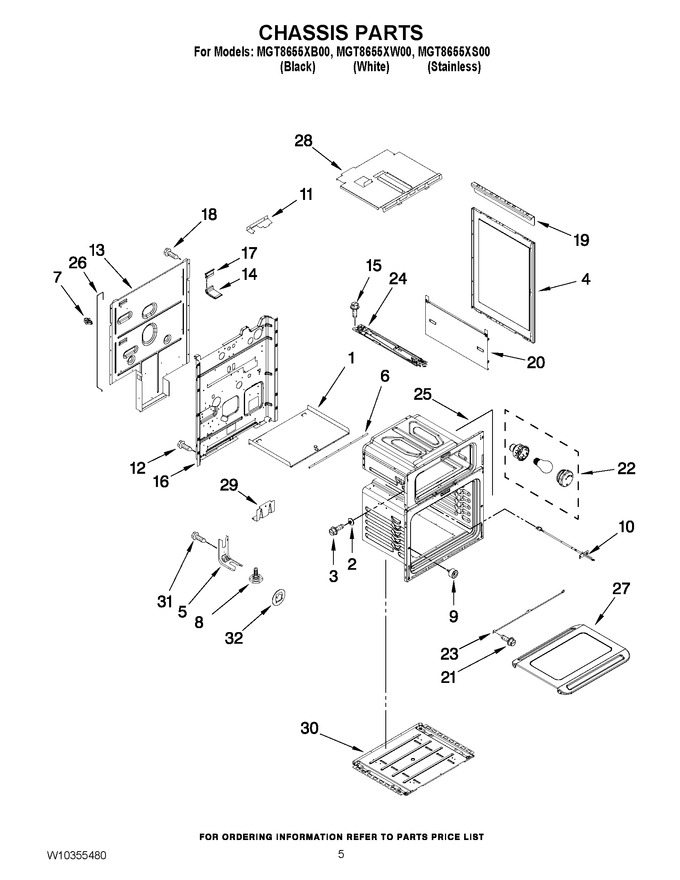

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319038 | Shield, Gemini (Replaces: W10318912) |
|
$ 143.35 | |||||
| 2 | WPW10237689 | Spacer, Side Panel (Replaces: W10237689) |
|
$ 79.83 | |||||
| 3 | WPW10267456 | Screw, Shoulder (Replaces: W10267456) |
|
$ 7.52 | |||||
| 4 | W10330375 | Panel, Side (black) |
|
$ 82.13 | |||||
| 4 | WPW10330376 | Panel, Side (white) (Replaces: W10330376) |
|
$ 207.46 | |||||
| 5 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F656-51) |
|
Immediately | $ 5.21 | ||||
| 6 | W10319000 | Gasket, Gemini Oven Shield |
|
- | |||||
| 7 | W10284945 | Guide, Rod |
|
- | |||||
| 8 | W11665456 | Foot, Leveler (4) (Replaces: 7101P507-60) |
|
Immediately | $ 28.11 | ||||
| 9 | W10105790 | Screw, Bumper |
|
$ 7.06 | |||||
| 10 | WP7430P044-60 | Probe, Sensor (Replaces: 7430P044-60) |
|
Immediately | $ 175.94 | ||||
| 11 | W10268558 | Cover, Lower Wire |
|
- | |||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 13 | WPW10261387 | Cover, Main Wire (Replaces: W10261387) |
|
$ 199.00 | |||||
| 14 | W11243157 | Assembly, Flue (upper) (Replaces: W10311326) |
|
$ 352.71 | |||||
| 14 | W10272519 | Assembly, Flue (lower) |
|
- | |||||
| 15 | 74003975 | Screw (door Lock) (Replaces: 7101P375-60) |
|
$ 14.03 | |||||
| 16 | WPW10260580 | Back, Main (Replaces: W10260580) |
|
$ 148.52 | |||||
| 17 | W10321445 | Assy., Flue Outlet (lower) |
|
- | |||||
| 17 | W10321446 | Assy., Flue Outlet (upper) |
|
- | |||||
| 18 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 7.19 | |||||
| 19 | W10319087 | Bracket, End Post Support |
|
$ 79.14 | |||||
| 20 | WPW10253471 | Shield, Side Insul (Replaces: W10253471) |
|
$ 152.04 | |||||
| 21 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 17.71 | |||||
| 22 | W10323374 | Assembly, Light |
|
$ 44.40 | |||||
| 23 | W10299886 | Trim, Kickplate |
|
$ 88.08 | |||||
| 24 | W10883049 | Lock, Door (Replaces: W10331119) |
|
Immediately | $ 306.46 | ||||
| 25 | WPW10269069 | Gasket, Oven Door ()lower (Replaces: W10269069) |
|
Immediately | $ 181.71 | ||||
| 25 | W10318928 | Gasket, Oven Door (upper) |
|
$ 168.92 | |||||
| 26 | W10284949 | Rod, Shutoff |
|
- | |||||
| 27 | WPW10272546 | Bottom, Oven (Replaces: W10272546) |
|
Immediately | $ 211.92 | ||||
| 28 | W10324643 | Support, Insulation |
|
- | |||||
| 29 | W10260703 | Support, Oven |
|
- | |||||
| 30 | W10312768 | Base, Gas (Replaces: 4003F070-51) |
|
- | |||||
| 31 | WP7101P485-60 | Screw (Replaces: 7101P485-60) |
|
$ 29.26 | |||||
| 32 | 74008835 | Clip, Foot (Replaces: 7112P158-60) |
|
$ 10.44 | |||||
| NI | W10324645 | Insulation, Floor |
|
- | |||||
| NI | W11684769 | Insulation, Upper (wrapper) (Replaces: W10318910) |
|
$ 120.07 | |||||
| NI | W11688777 | Insulation, Upper (back) (Replaces: W10318918) |
|
$ 72.12 | |||||
| NI | W11688385 | Insulation, Lower (wrapper) (Replaces: W10318911) |
|
$ 121.43 | |||||
| NI | W11685611 | Insulation, Lower (back) (Replaces: W10204081) |
|
$ 117.81 |
