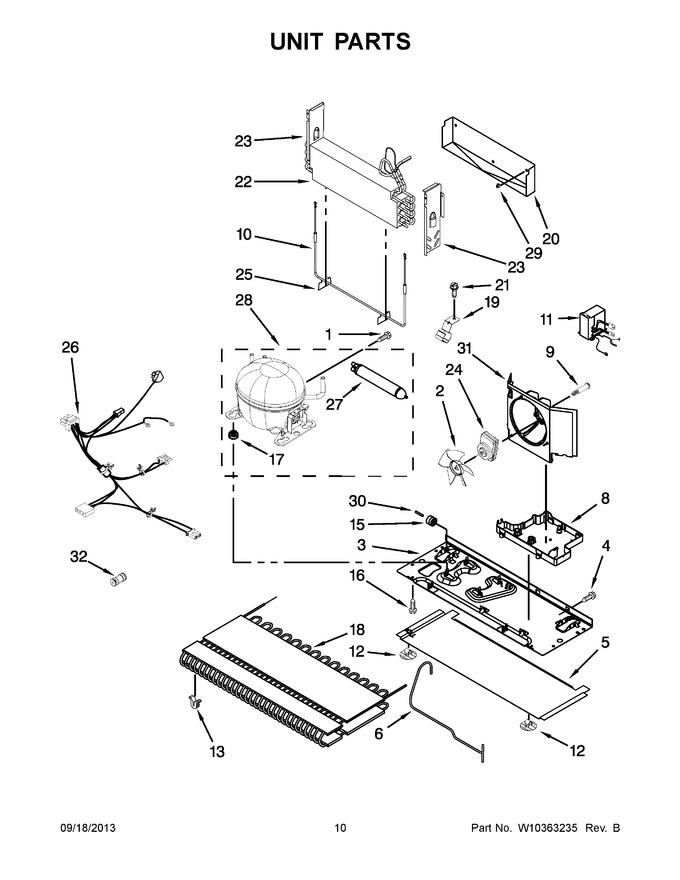

06 - Unit Parts


07 - Shelf Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Motor And Ice Container Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 84.17
3	W11727651		Basepan   (Replaces: W10210985)				$ 99.50
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
5	W10206338		Extension, Basepan		Appelez-nous	-
6	W10242974		Tube, Discharge				$ 78.29
8	WPW10655368		Pan, Drain   (Replaces: W10296785)			Immediately	$ 99.42
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 11.95
10	WP12729123		Heater, Defrost   (Replaces: 12729123)				$ 172.30
11	W10893917		Assembly, Inverter Box   (Replaces: W10186719)			Immediately	$ 423.71
12	W10206339		Fastener, Basepan				$ 10.10
13	WPW10137529		Grommet, Condenser   (Replaces: W10137529)				$ 7.88
15	12477102		Roller			Immediately	$ 6.64
16	12992101		Screw		Appelez-nous	-
17	WPW10169124		Grommet, Compressor   (Replaces: 10835903SP)				$ 6.80
18	WPW10346415		Condenser   (Replaces: W10135026)				$ 316.94
19	W10281329		Clip, Drier				$ 12.36
20	W11547653		Tray, Drip   (Replaces: W10292803)				$ 51.32
21	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
22	12002730		Evaporator   (Replaces: 12959803)				$ 327.28
23	12963002SP		Dam (left Hand)		Appelez-nous	-
23	12963102SP		Dam (right Hand)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: W10239053)			Immediately	$ 129.31
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 133.36
26	W10271463		Harness, Unit With Power Cord				$ 250.01
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 27.70
28	W10276644		Compressor   (Replaces: W10168473)			Immediately	$ 685.42
29	10623002		Clip, Evaporator				$ 10.90
30	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.11
31	W11556315		Shroud   (Replaces: W10189184)				$ 75.28
32	WP4373559		Connector, Reducing Union   (Replaces: 2209709)				$ 73.10
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	N/P		Refrigerant Charge 5.5 Oz. (r-134a)		Appelez-nous	-
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
