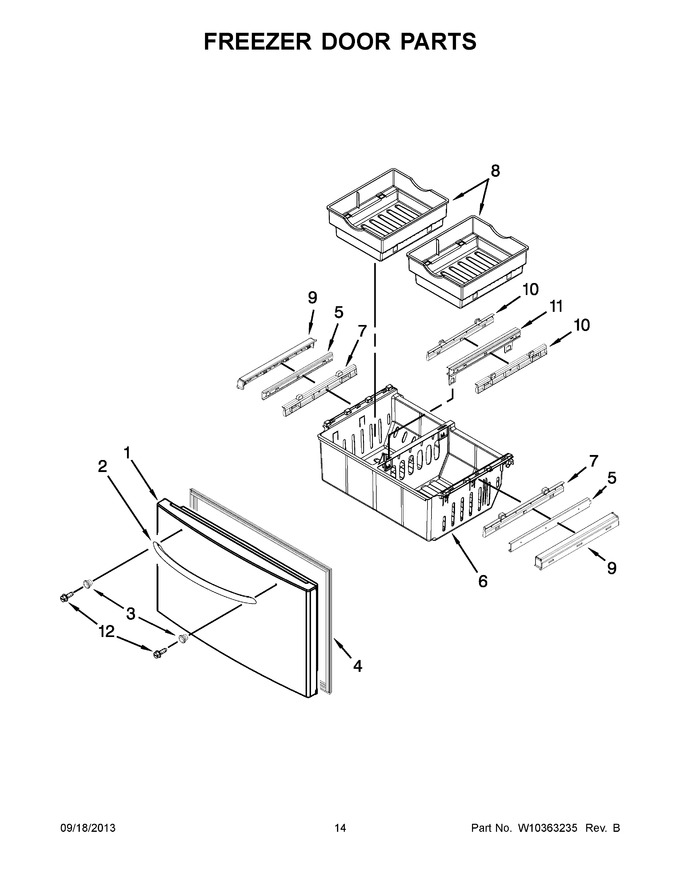

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977835B		Freezer Door (black)		Appelez-nous	-
1	12977823W		Freezer Door (white)		Appelez-nous	-
1	12977847S		Freezer Door (stainless)		Appelez-nous	-
2	WPW10138763		Handle, Door (stainless)   (Replaces: W10138763)				$ 251.88
2	13004702B		Handle, Door (black)		Appelez-nous	-
2	13004702W		Handle, Door (white)		Appelez-nous	-
3	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.30
4	WPW10714545		Gasket, Door (grey)   (Replaces: W10164045)				$ 291.24
4	WPW10443321		Gasket, Door (white)   (Replaces: W10164043)				$ 323.86
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 324.80
5	WPW10235367		Glide, Upper   (Replaces: W10235367)				$ 282.09
6	12924801SP		Bin, Lower		Appelez-nous	-
7	W10166742		Adapter, Outer Bin   (Replaces: 12925403SP)				$ 88.31
8	WP12924903		Bin, Upper Freezer   (Replaces: 12924903)				$ 119.07
9	W10826788		Retainer, Glide (left Hand)   (Replaces: 12925501SP)				$ 51.75
9	WP67006368		Retainer, Glide (right Hand )   (Replaces: 12925502SP)				$ 173.61
10	12925404SP		Adapter, Center Bin				$ 40.79
11	WPW10235357		Bracket And Glide Assembly   (Replaces: W10235357)			Immediately	$ 297.88
12	W10290759		Screw				$ 5.83
