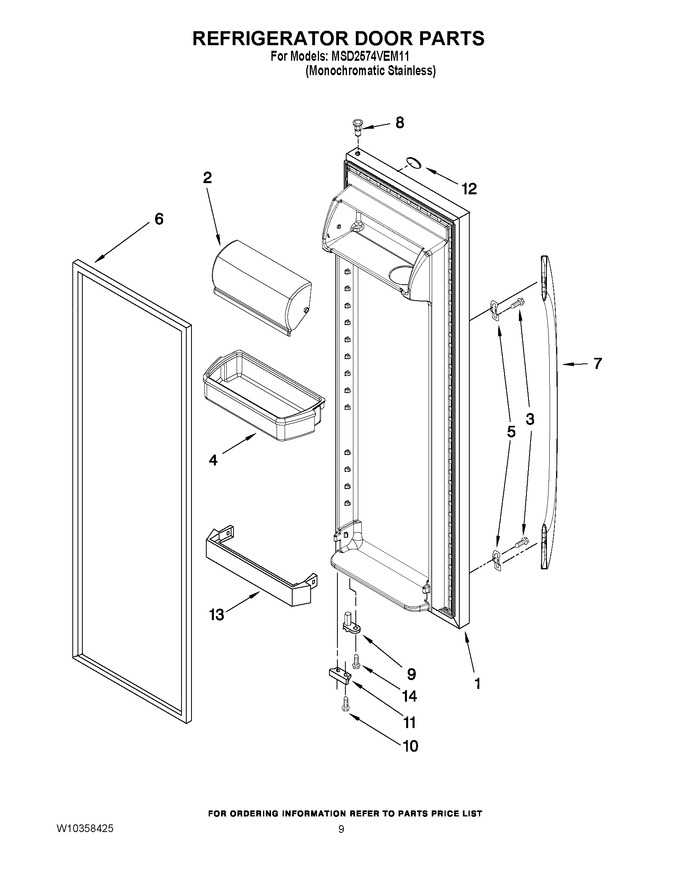

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10271944 | Refrigerator Door (includes Item 6) (mono Stainless) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | WPW10288153 | Screw (Replaces: W10129563) |
|
Immediately | $ 9.65 | ||||
| 4 | WPW10321304 | Door Bin (3) (Replaces: W10321304) |
|
Immediately | $ 44.73 | ||||
| 5 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 36.55 | |||||
| 6 | WPW10136734 | Door Gasket, Magnetic (Replaces: 2327163) |
|
$ 335.39 | |||||
| 7 | WPW10170739 | Handle (Replaces: W10170739) |
|
$ 363.92 | |||||
| 8 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 9 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 10 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 11 | W10185571 | Bracket, Door Stop |
|
- | |||||
| 12 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 13 | WP2309941 | Trivet, Shelf (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 14 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 |
