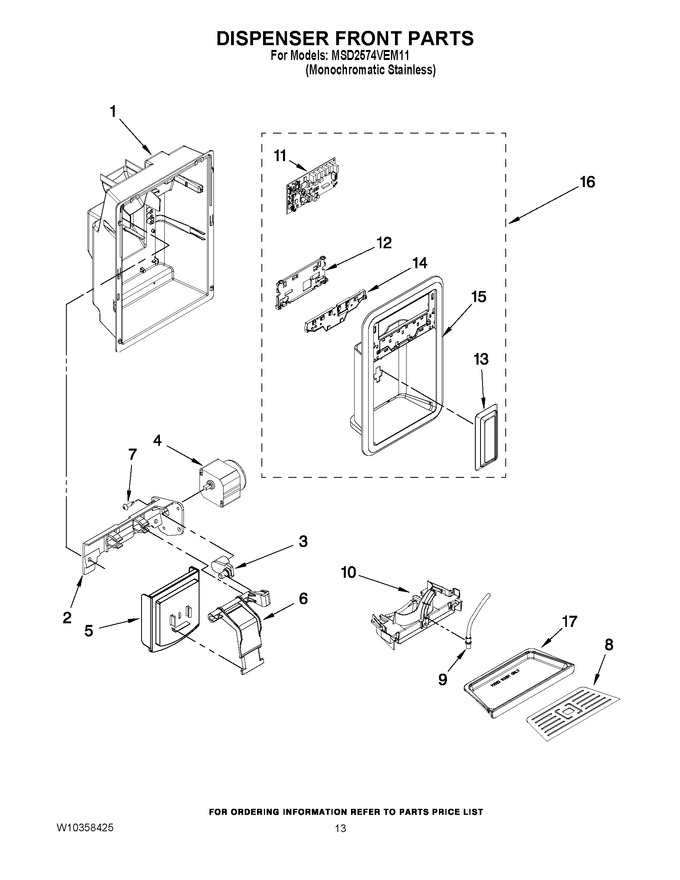

08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 101.60
3	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 101.82
4	W10174787		Motor, Ice Door				$ 76.38
5	2328020		Door, Ice		Appelez-nous	-
6	2328018		Support, Ice Door				$ 50.64
7	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
8	W10144018		Grille		Appelez-nous	-
9	2328033		Water Tube				$ 43.88
10	2328015		Separator Assembly		Appelez-nous	-
11	W10144584		Electronic Control (core)				$ 232.34
12	W10144040		Cover, Electronic Control				$ 94.82
13	W10144511		Pad				$ 123.91
14	W10182888		Silicon Curtain				$ 17.16
15	N/P		Front Cover Housing (not Available Order No.16)		Appelez-nous	-
16	W10179006		Front Cover Assembly (includes Items 11, 12, 13, 14, & 15)		Appelez-nous	-
17	W10177382		Drip Tray, Stainless				$ 63.18
