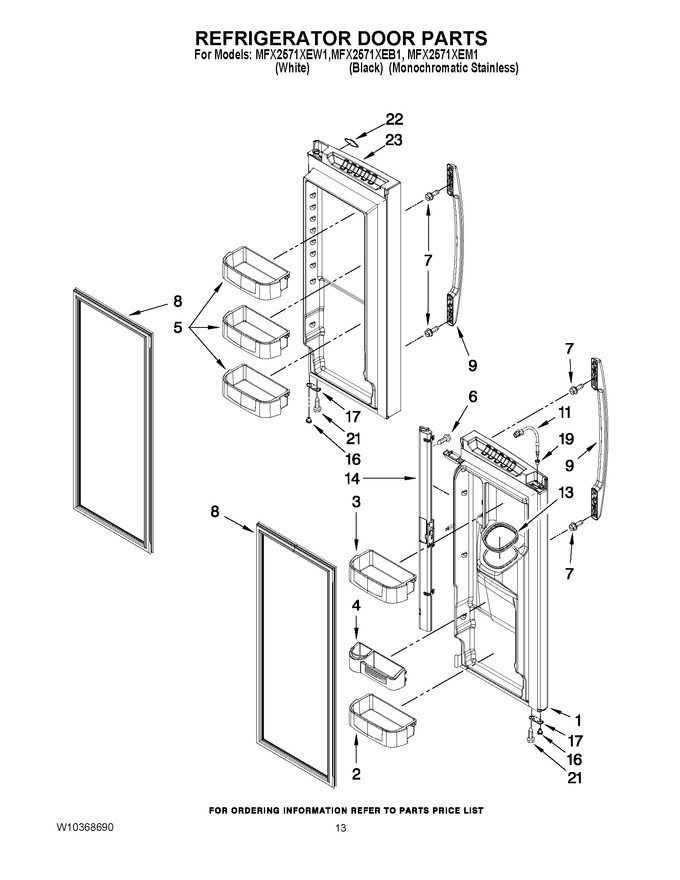

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107301W | Door, Left (white) |
|
- | |||||
| 1 | 13107301S | Door, Left (mono Stainless) |
|
- | |||||
| 1 | 13107301B | Door, Left (black) |
|
- | |||||
| 2 | W10297151 | Bucket-lower-lh |
|
- | |||||
| 3 | W10290553 | Bucket-upper-lh |
|
- | |||||
| 4 | W10290555 | Bucket-wine Bottle |
|
$ 34.29 | |||||
| 5 | WP12840004 | Bucket, Gallon (Replaces: 12840004) |
|
$ 90.37 | |||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 7 | WP12992902 | Screw, Handle (Replaces: 12992902) |
|
$ 11.07 | |||||
| 8 | W10830277 | Gasket, Door (black) (Replaces: W10294126) |
|
$ 319.13 | |||||
| 8 | W10830274 | Gasket, Door (apollo Grey) (Replaces: W10294127) |
|
Immediately | $ 205.74 | ||||
| 8 | W10830276 | Gasket, Door (white) (Replaces: W10294125) |
|
$ 319.15 | |||||
| 9 | W10252285 | Door Handle (black) |
|
- | |||||
| 9 | WPW10252284A | Door Handle (white) (Replaces: W10252284) |
|
$ 72.65 | |||||
| 9 | W10252288A | Door Handle (stainless) (Replaces: W10252288) |
|
$ 123.68 | |||||
| 11 | W10296451 | Waterline, Door |
|
$ 53.54 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 31.20 | ||||
| 14 | WPW10311757 | Mullion, Door (apollo Grey) (Replaces: W10311757) |
|
$ 134.42 | |||||
| 14 | W10311758 | Mullion, Door (black) |
|
$ 125.37 | |||||
| 14 | W10311759 | Mullion, Door (white) |
|
$ 120.84 | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 16 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.76 | ||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 65.99 | |||||
| 17 | W11703060 | Stop, Door (apollo Grey) (Replaces: 12968202AP) |
|
$ 14.72 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.05 | ||||
| 19 | 12996601 | Clip, Bushing Wire (left Door) |
|
$ 10.05 | |||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 22 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 67.14 | ||||
| 23 | 13107302S | Door, Right (mono Stainless) |
|
- | |||||
| 23 | 13107302W | Door, Right (white) |
|
- | |||||
| 23 | 13107302B | Door, Right (black) |
|
- |
