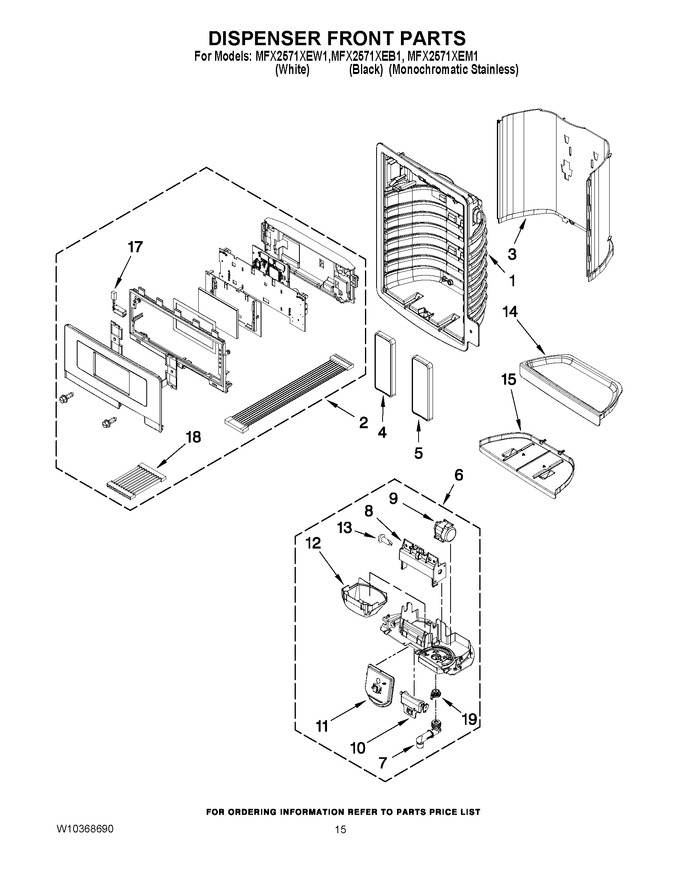

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10333276 | U I Assemly (black) |
|
$ 632.95 | |||||
| 2 | W10333277 | U I Assemly (white) |
|
$ 664.60 | |||||
| 2 | W10333275 | U I Assemly (stainless) |
|
$ 635.49 | |||||
| 3 | W11045975 | False Wall Disp. (white) (Replaces: W10215699) |
|
- | |||||
| 3 | W11045978 | False Wall Disp. (nickel) (Replaces: W10299897) |
|
$ 90.33 | |||||
| 3 | W11045976 | False Wall Disp. (black) (Replaces: W10233560) |
|
$ 43.18 | |||||
| 4 | WPW10368730 | Pad, Ice (black) (Replaces: W10334792) |
|
Immediately | $ 319.47 | ||||
| 4 | W10334789 | Pad, Ice (nickel) |
|
- | |||||
| 5 | WPW10368730 | Pad, Water (black) (Replaces: W10334816) |
|
Immediately | $ 319.47 | ||||
| 5 | W10334813 | Pad, Water (nickel) |
|
$ 42.69 | |||||
| 6 | W10353562 | Separator Assy. (stainless) |
|
- | |||||
| 6 | W10353556 | Separator Assy. (black) |
|
- | |||||
| 6 | W10353554 | Separator Assy. (white) |
|
- | |||||
| 7 | W11227371 | Spigot Body Assy. (Replaces: 2316647) |
|
$ 136.38 | |||||
| 8 | W10174827 | Bracket, Ice Door |
|
$ 76.42 | |||||
| 9 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 | ||||
| 10 | W10499850 | Support, Ice Door (Replaces: W10174809) |
|
$ 104.67 | |||||
| 11 | W10346235 | Door, Ice (Replaces: W10174811) |
|
$ 170.32 | |||||
| 12 | W10499850 | Guide, Ice (Replaces: W10174808) |
|
$ 104.67 | |||||
| 13 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 14 | W11045971 | Tray, Dispenser (black) (Replaces: W10267870) |
|
$ 65.90 | |||||
| 14 | W11045970 | Tray, Dispenser (white) (Replaces: W10267869) |
|
$ 65.93 | |||||
| 14 | WPW10305897 | Tray-dispenser (stainless) (Replaces: W10305897) |
|
$ 84.81 | |||||
| 15 | W10267861 | Slide-tray Disp. (black) |
|
$ 74.39 | |||||
| 15 | WPW10267863 | Slide-tray Disp. (apollo Grey) (Replaces: W10267863) |
|
$ 73.22 | |||||
| 15 | W10267860 | Slide-tray Disp. (white) |
|
- | |||||
| 17 | W11290115 | Led Assembly (Replaces: W10238083) |
|
$ 84.45 | |||||
| 18 | W10193350 | Harness, Jumper |
|
$ 56.57 | |||||
| 19 | 2305348 | Damper-spigot |
|
$ 30.84 |
