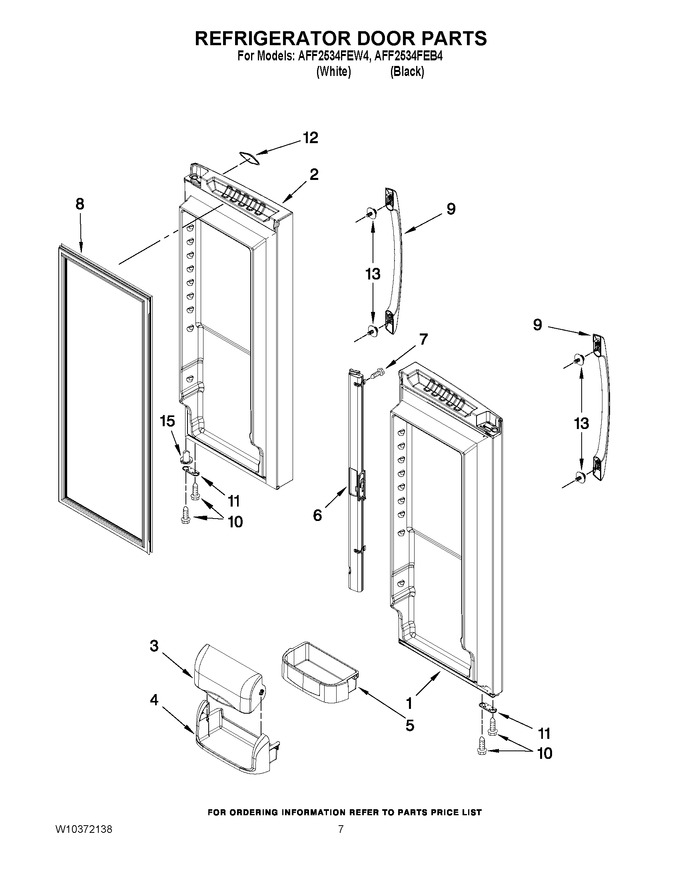

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13024018W		Door, Left (white)		Appelez-nous	-
1	13024018B		Door, Left (black)		Appelez-nous	-
2	13024017W		Door, Right (white)		Appelez-nous	-
2	13024017B		Door, Right (black)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	W10289496		Bucket, Door (gallon (2) Gripper-12567309sp)				$ 35.05
5	WPW10371193		Bucket, Door (medium (3) Gripper-12567307sp)   (Replaces: 12849104SP)			Immediately	$ 74.80
6	WP12722803B		Mullion, Door (black)   (Replaces: 12722803B)			Immediately	$ 206.80
6	WP12722803W		Mullion, Door (white)   (Replaces: 12722803W)			Immediately	$ 261.21
7	W11311945		Screw   (Replaces: 12990204)				$ 14.72
8	W10830189		Gasket, Door (white)   (Replaces: W10163894)			Immediately	$ 228.91
8	W11368721		Gasket, Door (black)   (Replaces: W10163895)			Immediately	$ 169.21
9	WPW10179168		Handle, Door (white - Rh)   (Replaces: W10179168)				$ 171.41
9	W10179169		Handle, Door (black - Lh)				$ 72.25
9	W10179171		Handle, Door (white - Lh)				$ 77.64
9	W10179166		Handle, Door (black - Rh)		Appelez-nous	-
10	WP98165		Screw   (Replaces: 12990504)				$ 8.57
11	12968202W		Stop, Door (white)				$ 69.29
11	W11708403		Stop, Door (black)   (Replaces: 12968202B)			Immediately	$ 14.75
12	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 62.74
13	WP12992902		Mount, Handle ((black And White Models))   (Replaces: 12992902)				$ 11.91
15	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
15	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 8.15
