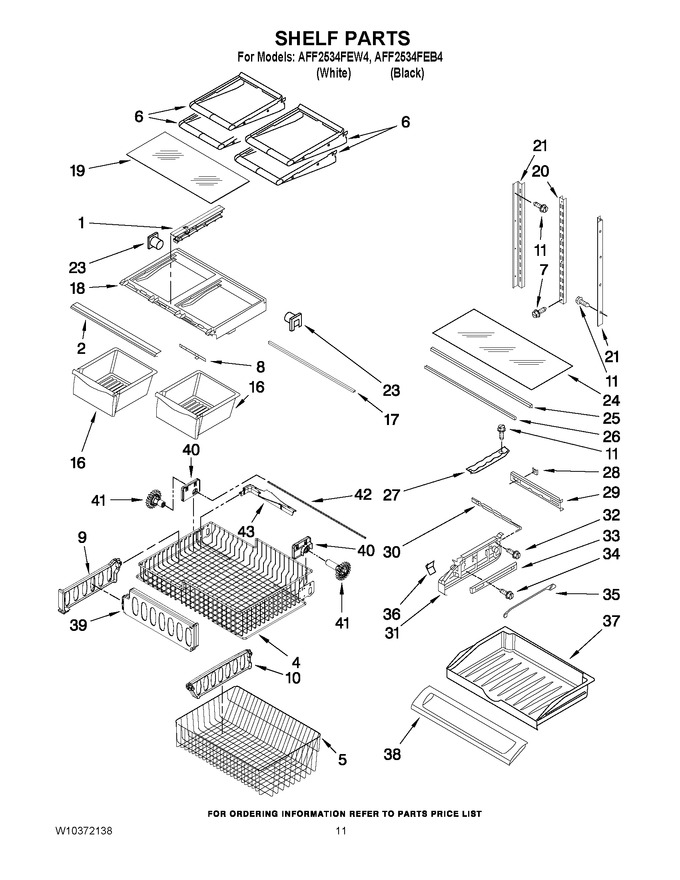

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10326469 | Rail, Center Crisper (Replaces: W10326469) |
|
Immediately | $ 33.37 | ||||
| 2 | W10231344 | Trim, Crisper |
|
$ 58.15 | |||||
| 4 | WPW10348246 | Basket, Freezer (upper) (Replaces: W10209706) |
|
$ 274.97 | |||||
| 5 | W10150039 | Basket, Freezer (lower) |
|
$ 128.38 | |||||
| 6 | 12654610 | Shelf (4) |
|
- | |||||
| 7 | W10215666 | Screw |
|
$ 9.53 | |||||
| 8 | WP67005864 | Slide, Humidity Control (2) (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 9 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 29.19 | ||||
| 10 | W10847995 | Divider, Basket (lower) (Replaces: W10146440) |
|
$ 92.48 | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 16 | WP67004515 | Pan, Crisper (Replaces: 12804601SP) |
|
Immediately | $ 176.72 | ||||
| 17 | WP12642303WD | Brace, Crisper (Replaces: 12642303WD) |
|
$ 112.26 | |||||
| 18 | WPW10329866 | Frame, Crisper (Replaces: W10329866) |
|
$ 226.44 | |||||
| 19 | WP67006704 | Glass, Crisper Cover (Replaces: 12204824) |
|
$ 212.77 | |||||
| 20 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 21 | W10251971 | Ladder, Side |
|
$ 59.47 | |||||
| 23 | WP13062602 | Support, Crisper Frame (Replaces: 13062602) |
|
$ 84.87 | |||||
| 24 | W11033333 | Glass, Pantry (Replaces: 12204830) |
|
$ 227.27 | |||||
| 25 | W11812285 | Trim, Pantry Glass (Replaces: 12655902SP) |
|
$ 53.33 | |||||
| 26 | WP12227305WD | Brace, Pantry (2) (Replaces: 12227305WD) |
|
$ 108.36 | |||||
| 27 | WP67001719 | Track, Pantry (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 28 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 22.09 | |||||
| 29 | 12656202 | Housing, Control |
|
$ 148.84 | |||||
| 30 | WP67003793 | Slide, Control (Replaces: 12655402) |
|
Immediately | $ 78.49 | ||||
| 31 | W10874836 | Endcap, Pantry (left) (Replaces: 12656106) |
|
Immediately | $ 38.43 | ||||
| 31 | W10874836 | Endcap, Pantry (right) (Replaces: 12656019) |
|
Immediately | $ 38.43 | ||||
| 32 | WP98165 | Screw (4) (Replaces: 12990504) |
|
$ 8.57 | |||||
| 33 | WPW10235370 | Glide, Pantry (2) (Replaces: W10235370) |
|
Immediately | $ 199.80 | ||||
| 34 | WP67006415 | Screw (4) (Replaces: 12990512) |
|
$ 8.38 | |||||
| 35 | WP67003795 | Bar, Temp Cont. (Replaces: 12655304) |
|
$ 8.45 | |||||
| 36 | W11498983 | Knob, Control (Replaces: 12655204V) |
|
$ 30.64 | |||||
| 37 | WP67003531 | Drawer, Pantry (Replaces: 12731302) |
|
$ 162.82 | |||||
| 38 | W10827015 | Lid, Pantry (Replaces: 12656816) |
|
Immediately | $ 175.81 | ||||
| 39 | W10171558 | Divider, Upper |
|
$ 42.49 | |||||
| 40 | W10348259 | Mount-gear (left) |
|
$ 89.87 | |||||
| 40 | W10348260 | Mount-gear (right) |
|
$ 89.90 | |||||
| 41 | WPW10474716 | Gear (left) (Replaces: W10158749) |
|
Immediately | $ 32.42 | ||||
| 41 | WPW10474715 | Gear (right) (Replaces: W10146446) |
|
Immediately | $ 32.76 | ||||
| 42 | W11173556 | Shaft-rack (Replaces: 12812904WD) |
|
$ 32.38 | |||||
| 43 | W10149389 | Lift-bail Arm |
|
$ 92.66 |
