SELECT A DIAGRAM

01 - Cover Sheet

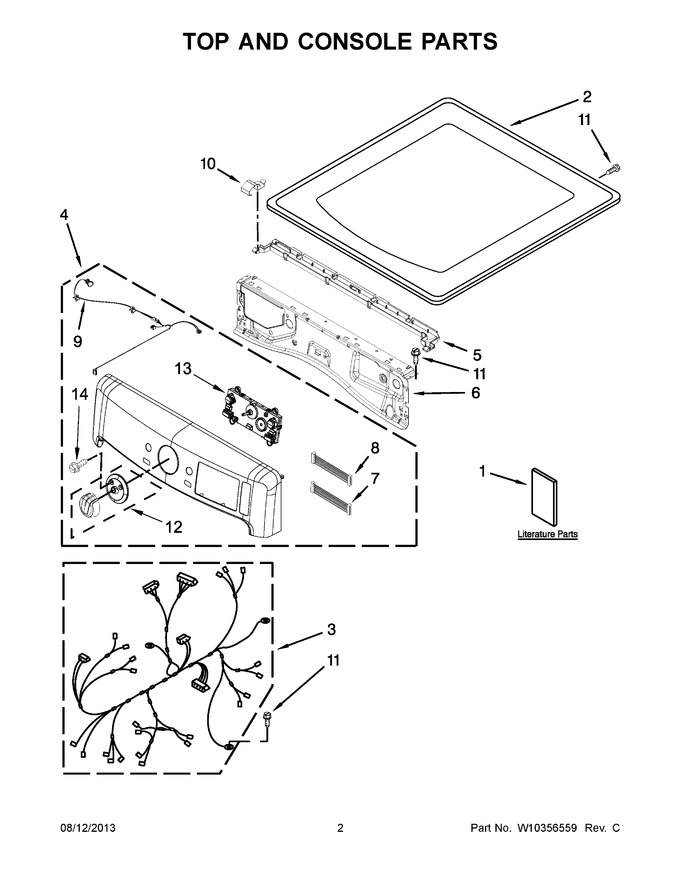

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - W10307147 Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10297011		Wiring Diagram		Appelez-nous	-
1	W10312954		Use And Care Guide		Appelez-nous	-
1	W10057364		Installation Instructions		Appelez-nous	-
1	W10316958		Tech Sheet		Appelez-nous	-
2	W10337792		Top (red)				$ 136.71
2	W10301057		Top (cosmetallic)				$ 139.14
2	WPW10208383		Top (white)   (Replaces: W10208383)				$ 308.50
3	W10355891		Harness, Main		Appelez-nous	-
4	W10350669		Console Assembly (white)		Appelez-nous	-
4	W10350671		Console Assembly (red)				$ 428.15
4	W10350673		Console Assembly (cosmetallic)		Appelez-nous	-
5	WPW10653575		Channel, Water   (Replaces: W10317570)				$ 86.61
6	W11480682		Bracket, Console   (Replaces: W10208198)				$ 75.41
7	W10309986		Harness, Jumper				$ 16.05
8	W10309987		Harness, Jumper				$ 12.46
9	W10267833		Cable, User Interface		Appelez-nous	-
10	W10317566		Clip, Spring				$ 8.72
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
12	W10514146		Kit, Knob And Inlay			Immediately	$ 96.76
13	W10348583		Ui, Center (includes Knob And Inlay)		Appelez-nous	-
14	WP8533993		Screw   (Replaces: W10146359)				$ 10.57

    View Diagram in Separate Window       Print Part List
