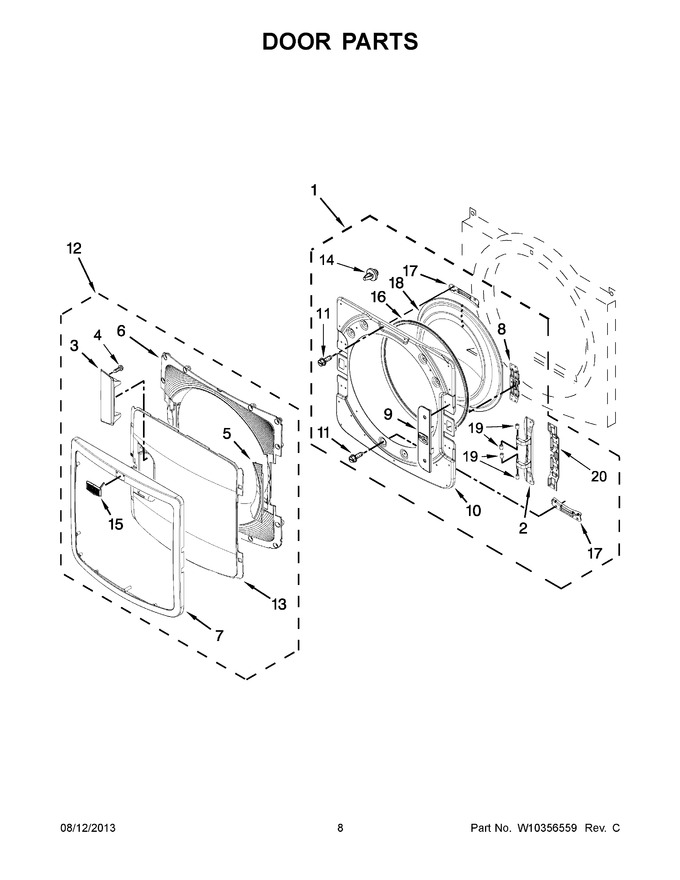

05 - Door Parts


06 - W10307147 Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11465962		Assembly, Inner Door   (Replaces: W10272387)				$ 272.33
2	WPW10208415		Hinge Base   (Replaces: W10208415)			Immediately	$ 117.42
3	W10272398		Handle, Door				$ 102.97
4	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.19
5	W10272400		Plug, Door				$ 13.62
6	W10272392		Door, Intermediate		Appelez-nous	-
7	W10272390		Trim, Door				$ 162.19
8	WPW10208254		Assembly, Door Catch   (Replaces: W10208254)				$ 81.28
9	W10272404		Cover, Door Catch				$ 64.79
10	W11491634		Door, Inner   (Replaces: W10285652)				$ 240.91
11	W11661566		Screw   (Replaces: W10288126)				$ 14.03
12	W10272389		Outer Door Assembly				$ 235.46
13	W10272391		Door, Outer Screen				$ 158.20
14	8572266		Bumper, Door			Immediately	$ 11.17
15	W10732500		Badge (chrome)   (Replaces: W10316087)				$ 43.27
16	W11310035		Seal, Glass   (Replaces: W10329710)			Immediately	$ 86.79
17	W10208252		Bracket, Glass		Appelez-nous	-
18	W11310036		Glass, Door   (Replaces: W10208417)				$ 181.59
19	WPW10208398		Cap, Hinge   (Replaces: W10208398)			Immediately	$ 21.47
20	WPW10208419		Plate, Hinge Retainer   (Replaces: W10208419)				$ 81.85
