Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 W10175967 Escutcheon, Meat Pan Control Special Order $ 77.20

3 2182757 Slide Meat Pan Control Special Order $ 75.15

4 2257741 Louver Appelez-nous -
5 W11239891 Light Lens   (Replaces: W10166019) Special Order $ 101.52

6 WPW10276792 Reservoir   (Replaces: W10204356) Special Order $ 144.45

7 488280 Screw Appelez-nous -
8 8009 Light Bulb   (Replaces: 527949) In-Stock Immediately $ 18.67

9 W10759522 Screw (2)   (Replaces: 486298) Special Order $ 8.24

10 WP2256085 Bracket Retainer   (Replaces: 2256085) Special Order $ 36.10

11 WP488488 Screw   (Replaces: 489290) Special Order $ 8.52

12 W10151375 Air Diffuser Assembly Special Order $ 51.43

13 2152019 Air Diffuser Cover Special Order $ 90.33

14 W10252495 Cover, Wiring Appelez-nous -
15 4387478 Socket   (Replaces: 2162085) In-Stock Immediately $ 115.67


    View Diagram in Separate Window     Print Icon   Print Part List

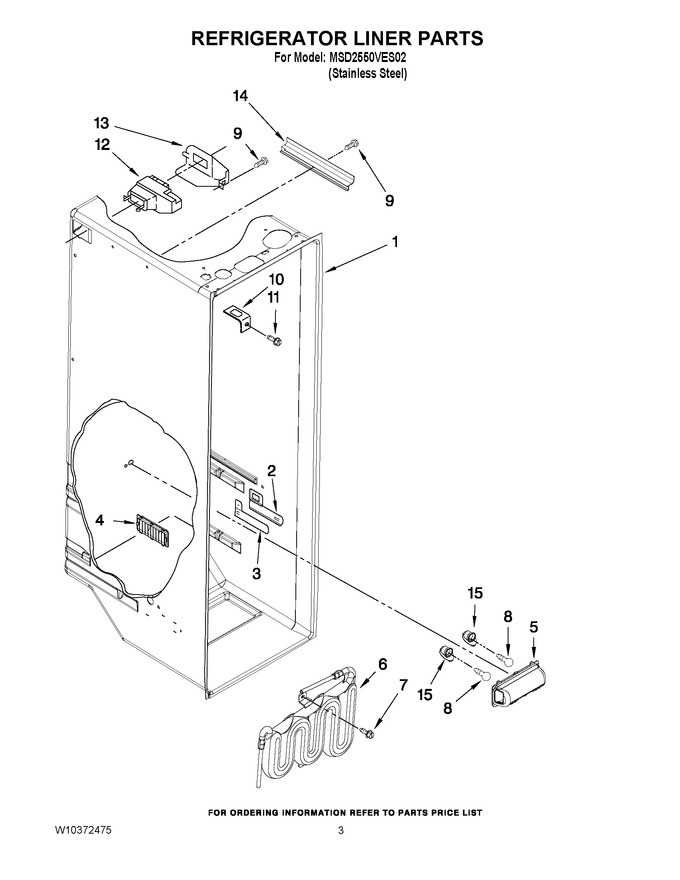

Diagram for MSD2550VES02
