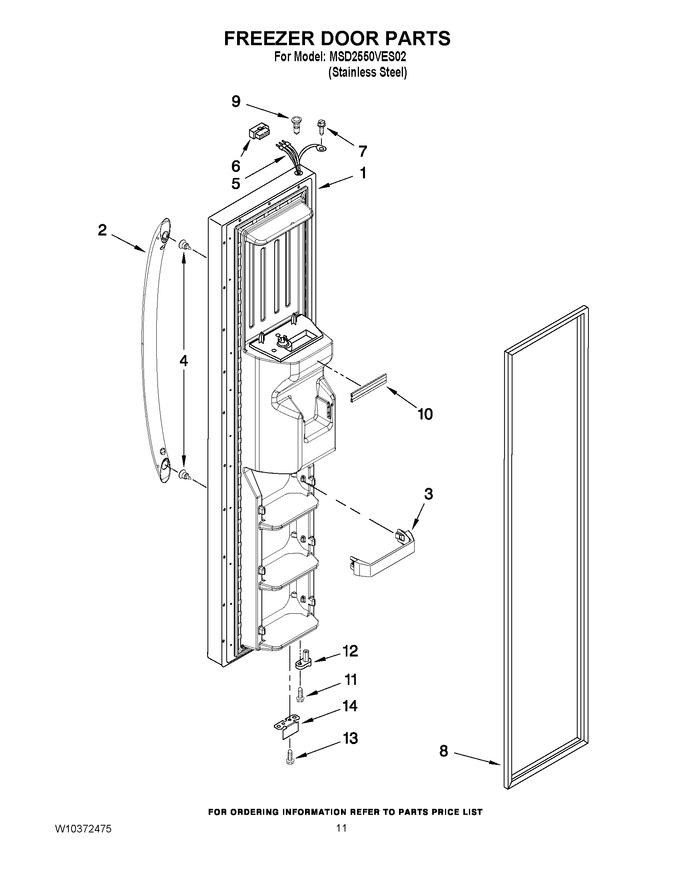

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10321301		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	W11690159		Handle   (Replaces: 67006391)				$ 173.76
3	WP2309718		Door Trim (3)   (Replaces: 2309718)				$ 61.49
4	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
5	2198619		Dispenser Harness		Appelez-nous	-
6	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
7	WP489128		Screw   (Replaces: 488500)				$ 11.40
8	2159082		Door Gasket, Magnetic   (Replaces: 2309533)				$ 332.49
9	WP2182181		Thimble-top   (Replaces: 2182181)				$ 8.15
10	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 24.27
11	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	W10185567		Bracket, Door Stop		Appelez-nous	-
