SELECT A DIAGRAM

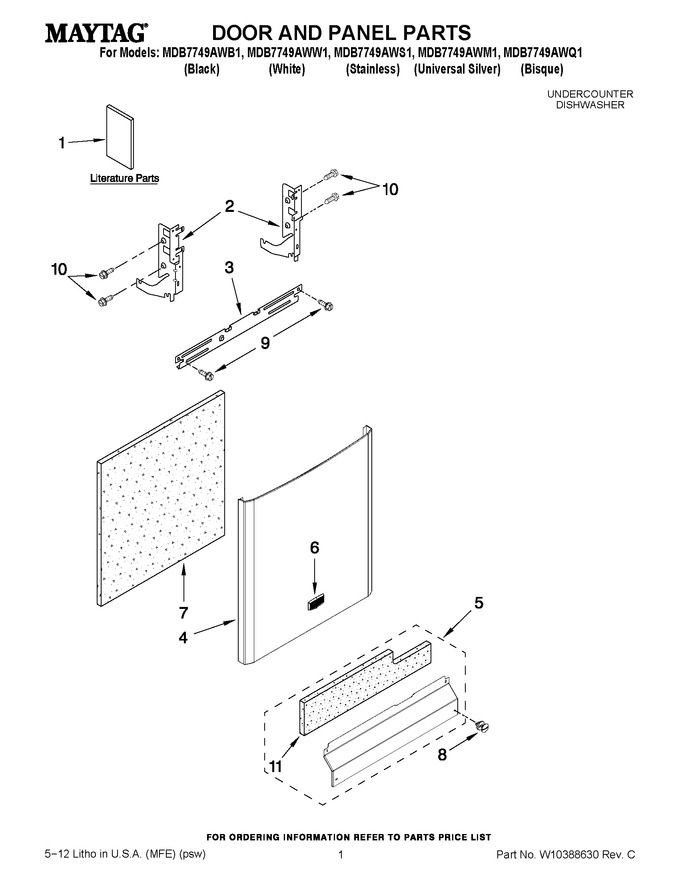

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10255114		Guide, Use & Care		Appelez-nous	-
1	W10284980		Instructions, Installation		Appelez-nous	-
1	W10329555		Energy Guide		Appelez-nous	-
1	W10142800		Tech Sheet		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	W10329316		Panel Front (white)				$ 128.66
4	W10329317		Panel Front (bisque)		Appelez-nous	-
4	W10329318		Panel Front (stainless)				$ 154.04
4	W10329315		Panel Front (black)				$ 128.46
5	W10827631		Access Panel (incl. Insulation) (black)   (Replaces: W10369024)			Immediately	$ 195.64
6	W10288004		Nameplate				$ 52.11
7	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
8	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 30.39
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30

    View Diagram in Separate Window       Print Part List
