SELECT A DIAGRAM

01 - Door And Panel Parts

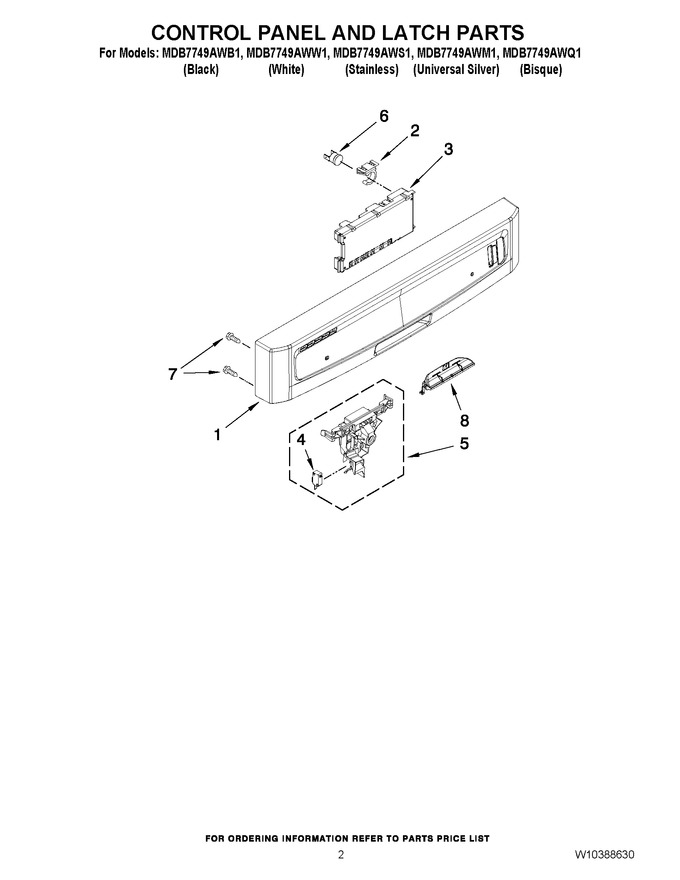

02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10811151		Console Assembly (includes Active Overlay & Insert) (stainless)   (Replaces: W10356493)				$ 391.36
1	W10811148		Console Assembly (includes Active Overlay & Insert) (black)   (Replaces: W10356459)				$ 388.84
1	W10811149		Console Assembly (includes Active Overlay & Insert) (white)   (Replaces: W10356460)			Immediately	$ 181.14
1	W10356461		Console Assembly (includes Active Overlay & Insert) (bisque)		Appelez-nous	-
2	8546546		Clip, Bi-metal				$ 7.82
3	W11202746		Control, Electronic   (Replaces: W10298356)				$ 314.94
4	3369325		Switch, Door		Appelez-nous	-
5	WPW10404412		Latch Assembly   (Replaces: W10077360)			Immediately	$ 85.50
6	W10258275		Bi-metal   (Replaces: 661663)			Immediately	$ 41.71
7	WPW10348409		Screw   (Replaces: 3369051)			Immediately	$ 8.20
8	W10859807		Handle, Latch (bisque)   (Replaces: W10205891)				$ 135.21
8	W10205889		Handle, Latch (black)				$ 49.75
8	WPW10205890		Handle, Latch (white)   (Replaces: W10205890)				$ 126.51

    View Diagram in Separate Window       Print Part List
