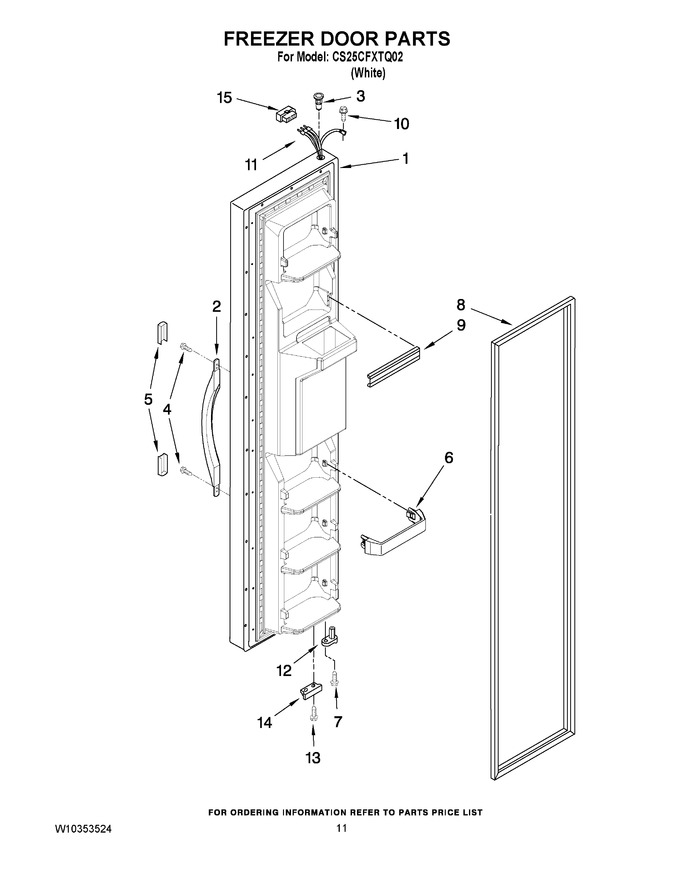

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309947W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10285542		Handle				$ 71.46
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
4	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
5	2194272W		Trim, Handle				$ 5.85
6	WP2309718		Trivet (4)   (Replaces: 2309718)				$ 58.56
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159074		Door Gasket, Magnetic   (Replaces: 2309532)				$ 310.19
9	WP2309718		Trim, Door Shelf   (Replaces: 2309718)				$ 58.56
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2311641		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	W10185566		Bracket, Door Stop		Appelez-nous	-
15	WP2154473		Connector   (Replaces: 2154473)				$ 23.65

    View Diagram in Separate Window       Print Part List
