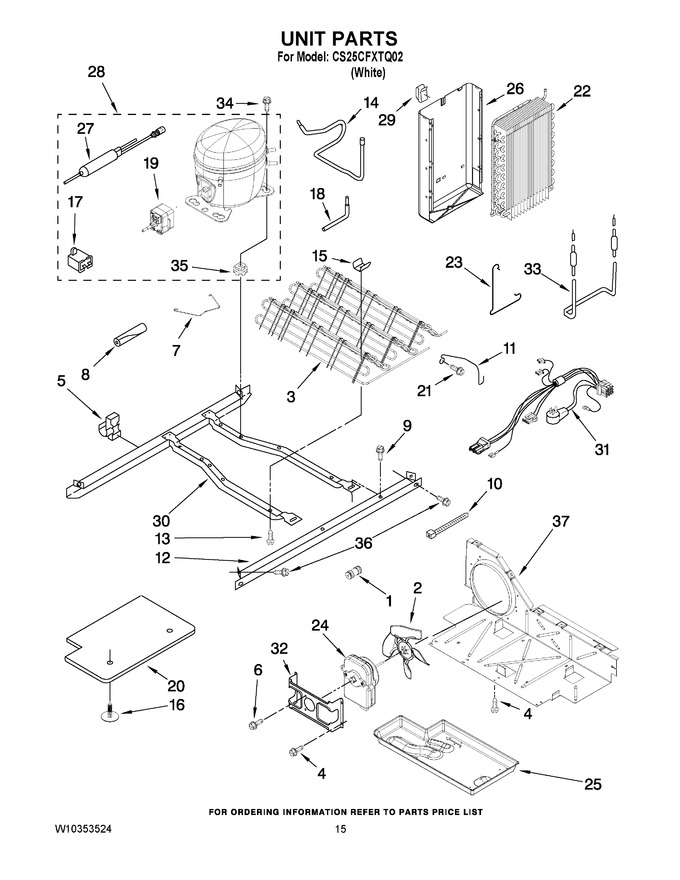

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10334458		Connector, Water   (Replaces: W10271540)				$ 21.59
2	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
3	2324712		Condenser Assembly   (Replaces: W10222349)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2208280		Clip, Wire		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	2255009		Clip, Retaining		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WP489427		Screw   (Replaces: 489427)				$ 7.47
10	WPW10339879		Strap   (Replaces: 2263990)				$ 7.90
11	2186495		Guard, Fan		Appelez-nous	-
12	WPW10196323		Unit Mounting Rail   (Replaces: W10196323)				$ 118.94
13	W11544659		Screw   (Replaces: 8281232)				$ 13.67
14	2313230		Tube Suction		Appelez-nous	-
15	W10683556		Clip, Condenser (2)   (Replaces: 2311725)				$ 18.46
16	489396		Clip				$ 10.72
17	WP65889-4		Capacitor (service Only)   (Replaces: 2252799)			Immediately	$ 61.14
18	2325479		Process Tube		Appelez-nous	-
19	WPW10240344		Start Device, (combination Relay & Overload) (service)   (Replaces: W10240344)				$ 180.30
20	2304899		Unit Cover, Bottom		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
23	2161324		Clip (2)		Appelez-nous	-
24	W10124096		Fan, Motor   (Replaces: W10130108)			Immediately	$ 112.20
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	W10194475		Heat Shield		Appelez-nous	-
27	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
27	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
28	W10355489		Compressor (includes Items 17, 19, 27, & 35) (also Order 876765 Tube Kit)   (Replaces: W10240420)				$ 646.20
29	2155547		Clip, Heat Shield		Appelez-nous	-
30	W10196321		Unit Mounting Frame		Appelez-nous	-
31	W10281341		Unit, Harness (includes Power Cord)				$ 240.86
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
33	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
34	W11661574		Screw   (Replaces: 489473)				$ 13.61
35	W11661108		Grommet (4) (service)   (Replaces: 2183042)				$ 14.49
36	489340		Screw (5)		Appelez-nous	-
37	W10332806		Air Baffle				$ 102.82
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
