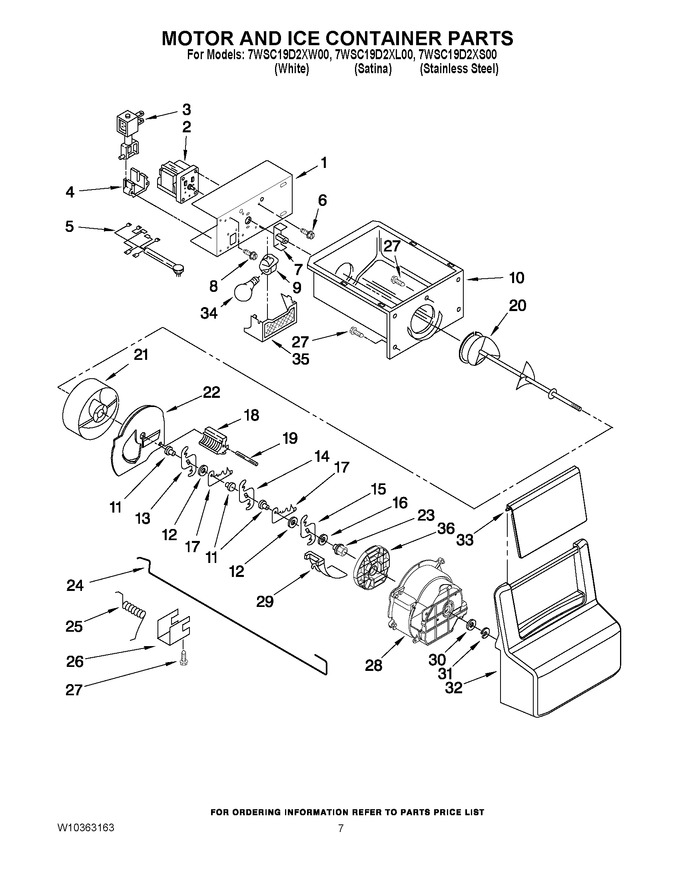

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10276181 | Bracket, Motor |
|
- | |||||
| 2 | W11671282 | Motor, Dispenser (Replaces: W10225578) |
|
Immediately | $ 158.53 | ||||
| 3 | W10326316 | Soleniod Assemby |
|
$ 114.79 | |||||
| 4 | W10850503 | Guide, Soleniod (Replaces: 2149100) |
|
$ 9.78 | |||||
| 5 | W10253294 | Wire Assembly, Ice Despenser |
|
- | |||||
| 6 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.57 | |||||
| 7 | WPW10169511 | Coupling, Motor (Replaces: W10169511) |
|
$ 22.06 | |||||
| 8 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 9 | W11447232 | Socket, Light (Replaces: W10352518) |
|
Immediately | $ 12.48 | ||||
| 10 | W10294543 | Ice Container |
|
$ 126.14 | |||||
| 11 | W10189661 | Spacer, Step |
|
$ 48.13 | |||||
| 12 | W11032808 | Spacer, Flat (Replaces: W10189658) |
|
$ 9.57 | |||||
| 13 | W10278731 | Blade, Rotary A |
|
$ 81.78 | |||||
| 14 | W10278732 | Blade, Rotary B |
|
$ 81.90 | |||||
| 15 | W10278733 | Blade, Rotary C |
|
$ 81.90 | |||||
| 16 | W10189660 | Washer, Plain |
|
- | |||||
| 17 | W10181990 | Blade, Fixed |
|
- | |||||
| 18 | W10138203 | Block, Blade (Replaces: W10189708) |
|
- | |||||
| 19 | 489229 | Roll Pin |
|
$ 43.62 | |||||
| 20 | W10294285 | Auger |
|
- | |||||
| 21 | 4388736 | Drum (Replaces: 2305377) |
|
$ 87.27 | |||||
| 22 | W10852691 | Floating Baffle (Replaces: 2171682) |
|
Immediately | $ 31.37 | ||||
| 23 | WP1119018 | Nut, Bearing (Replaces: 1119018) |
|
$ 7.11 | |||||
| 24 | W10294287 | Control Arm |
|
- | |||||
| 25 | 1119020 | Spring, Return |
|
$ 17.22 | |||||
| 26 | 1119021 | Retainer Clip, Rod |
|
$ 9.86 | |||||
| 27 | WP488787 | Screw (Replaces: 488886) |
|
$ 10.13 | |||||
| 28 | WPW10185018 | Housing, Crusher (Replaces: W10185018) |
|
$ 117.59 | |||||
| 29 | WP1119017 | Deflector, Ice (Replaces: 1119017) |
|
$ 7.16 | |||||
| 30 | 489234 | Washer, Plain |
|
$ 12.64 | |||||
| 31 | WP489236 | Retainer Ring (Replaces: 489236) |
|
Immediately | $ 11.50 | ||||
| 32 | W10276185 | Front Cover, Ice Container |
|
- | |||||
| 33 | W11661892 | Ice Door (Replaces: W10189202) |
|
$ 47.51 | |||||
| 34 | W11679940 | Light Bulb (Replaces: W10311505) |
|
Immediately | $ 10.17 | ||||
| 35 | WP2171706 | Light Lens, Dispenser (Replaces: 2171706) |
|
$ 86.32 | |||||
| 36 | W10138206 | Spacer, Crusher Housing |
|
- | |||||
| 100 | W10294325 | Ice Container (complete) |
|
- |
