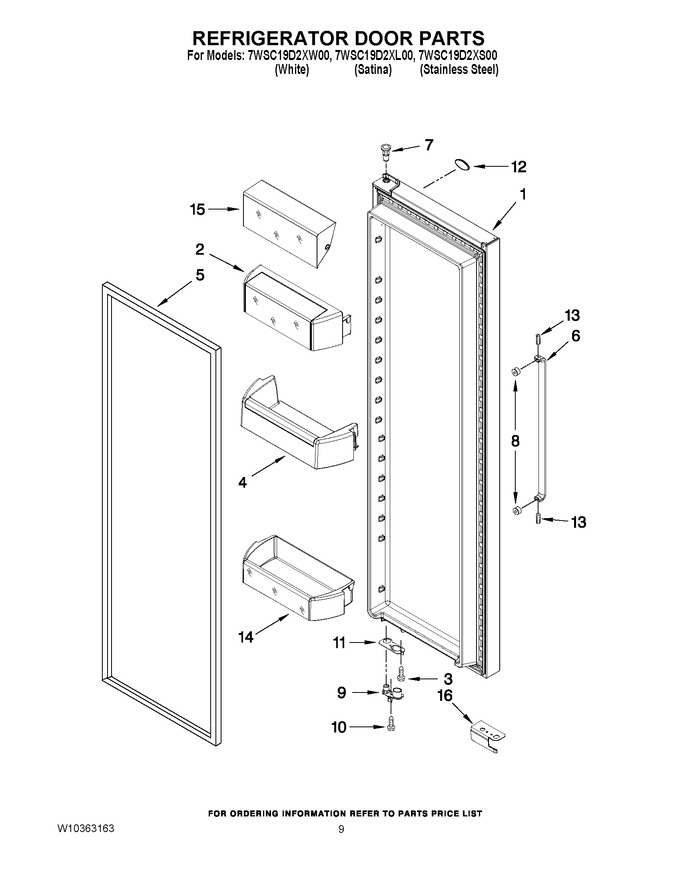

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10327651		Refrigerator Door (includes Item 5) (satina)		Appelez-nous	-
1	W10327653		Refrigerator Door (includes Item 5) (stainless)		Appelez-nous	-
1	LW10287400		Refrigerator Door (includes Item 5) (white)   (Replaces: W10287400)		Appelez-nous	-
2	WPW10324760		Door Compartment Assembly   (Replaces: W10326952)				$ 85.60
3	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
4	WPW10296855		Door Bin, Shallow   (Replaces: W10309877)				$ 79.15
5	WPW10247884		Door Gasket, Magnetic (mist Beige)   (Replaces: W10247884)				$ 322.97
5	WPW10249912		Door Gasket, Magnetic (black)   (Replaces: W10249912)				$ 329.18
6	W10851029		Handle   (Replaces: W10277354)		Appelez-nous	-
7	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
8	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 9.66
9	WPW10257201		Door Closer, Upper Cam (black)   (Replaces: W10257201)				$ 12.93
9	WPW10248011		Door Closer, Upper Cam (white)   (Replaces: W10248011)				$ 12.93
10	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
11	W11037957		Bracket, Door Stop (chrome)   (Replaces: W10247909)				$ 80.24
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
13	W11366418		Set Screw   (Replaces: W10223573)			Immediately	$ 18.43
14	WPW10335220		Door Bin, Gallon   (Replaces: W10335220)				$ 93.59
15	WPW10324760		Door, Compartment   (Replaces: W10326677)				$ 85.60
16	W10257216		Cover, Door Stop (black)		Appelez-nous	-
16	W10789144		Cover, Door Stop (white)   (Replaces: W10248013)				$ 19.38

    View Diagram in Separate Window       Print Part List
