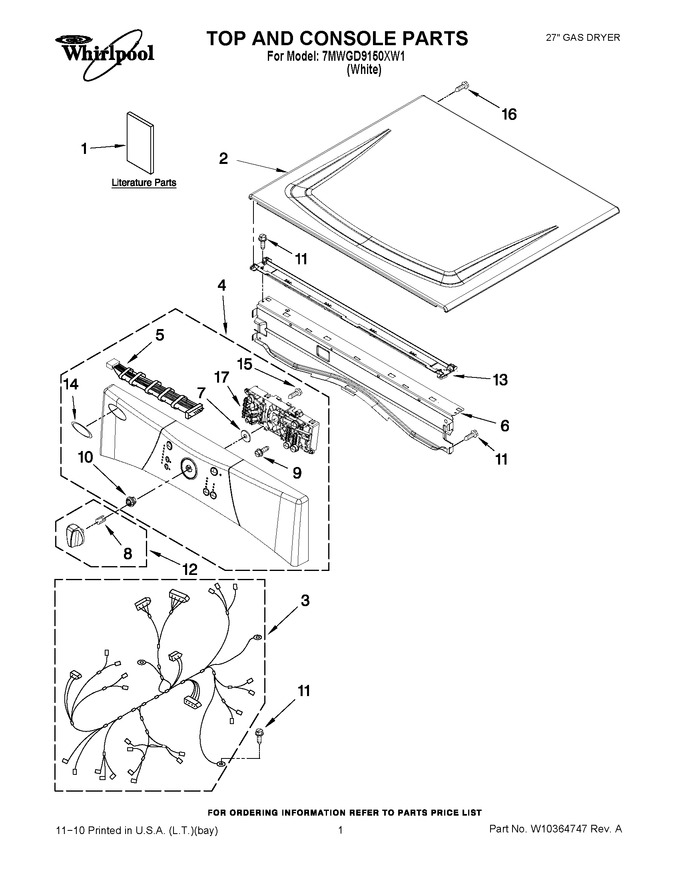

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10293911 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10339518		Use & Care Guide		Appelez-nous	-
1	W10238793		Tech Sheet		Appelez-nous	-
2	WPW10336080		Top   (Replaces: W10336080)				$ 331.99
3	W10251443		Harness, Main				$ 304.56
4	W10215747		Panel, Console				$ 244.73
5	W10259049		Cable, User Interface				$ 170.48
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	8572039		Seal, User Interface		Appelez-nous	-
8	W10153920		Spring, Knob		Appelez-nous	-
9	W10006580		Screw, M3-1.12 X 12 Pn		Appelez-nous	-
10	W10215835		Bushing, Shart Knob				$ 30.38
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	WPW10236098		Knob   (Replaces: W10236098)				$ 61.27
13	WPW10266747		Channel, Water   (Replaces: W10266747)				$ 73.96
14	W10117943		Badge Assembly		Appelez-nous	-
15	3400238		Screw, 2-28 X 1/2				$ 12.03
16	3400238		Screw, 2-28 X 1/2				$ 12.03
17	W10247234		Assembly, User Interface				$ 244.08

    View Diagram in Separate Window       Print Part List
