SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10293911 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)

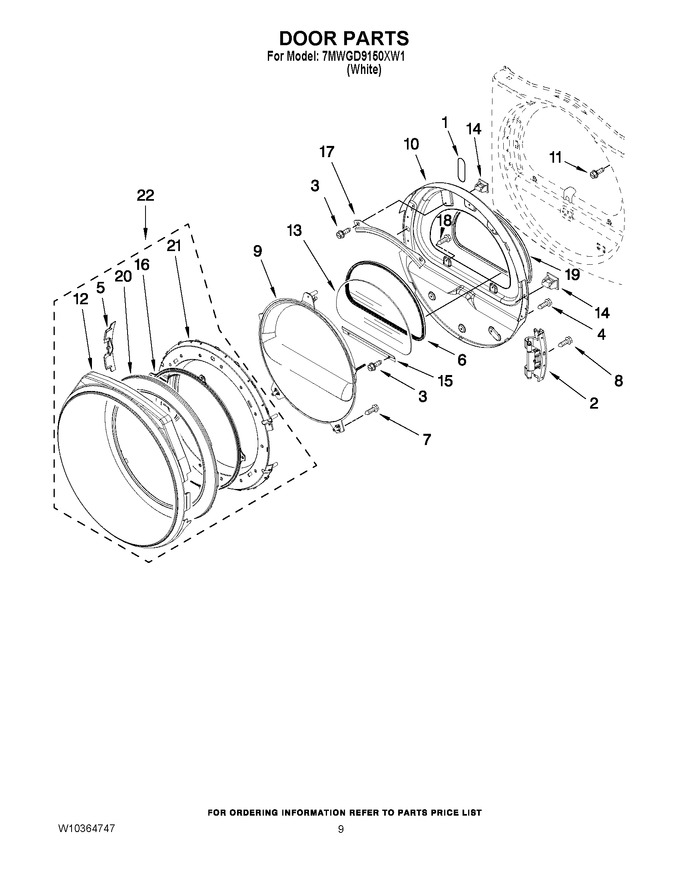

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10256915		Cover, Hinge Hole   (Replaces: W10256915)				$ 82.07
2	WPW10304672		Door Hinge Assembly   (Replaces: W10304672)			Immediately	$ 232.48
3	WP3373329		Screw, 10-16 X 3/64   (Replaces: 3393258)				$ 8.52
4	W11116979		Screw,8-18 X 1/2   (Replaces: 8534044)				$ 13.76
5	W10215766		Cover, Hinge				$ 26.09
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
7	WP8534022		Screw, 8-18 X 1/16   (Replaces: 8534022)				$ 8.37
8	WPW10159996		Screw, 10-24 X 3/64   (Replaces: W10159996)				$ 8.52
9	W10215761		Screen, Door (not Serviceable Separately, Order Item. 22)				$ 59.51
10	W11690171		Door Assembly (inner) (includes Illus. 1,14 & 19)   (Replaces: W10198441)				$ 204.49
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	W10215757		Door, Outer Ring				$ 95.49
13	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
15	W10822054		Retainer (lower)   (Replaces: 8519354)			Immediately	$ 18.01
16	W10215762		Door, Intermediate Rot		Appelez-nous	-
17	8519356		Retainer (upper)		Appelez-nous	-
18	W10850046		Screw (5)   (Replaces: 9742177)			Immediately	$ 7.55
19	WPW10163915		Seal, Door   (Replaces: W10163915)			Immediately	$ 87.42
20	W10215759		Trim-door Inner Ring (not Serviceable Separately, Order Item. 22)		Appelez-nous	-
21	W10215764		Door,intermediate, Stat				$ 97.85
22	W10215755		Outer Door Assembly				$ 215.61

    View Diagram in Separate Window       Print Part List
