SELECT A DIAGRAM

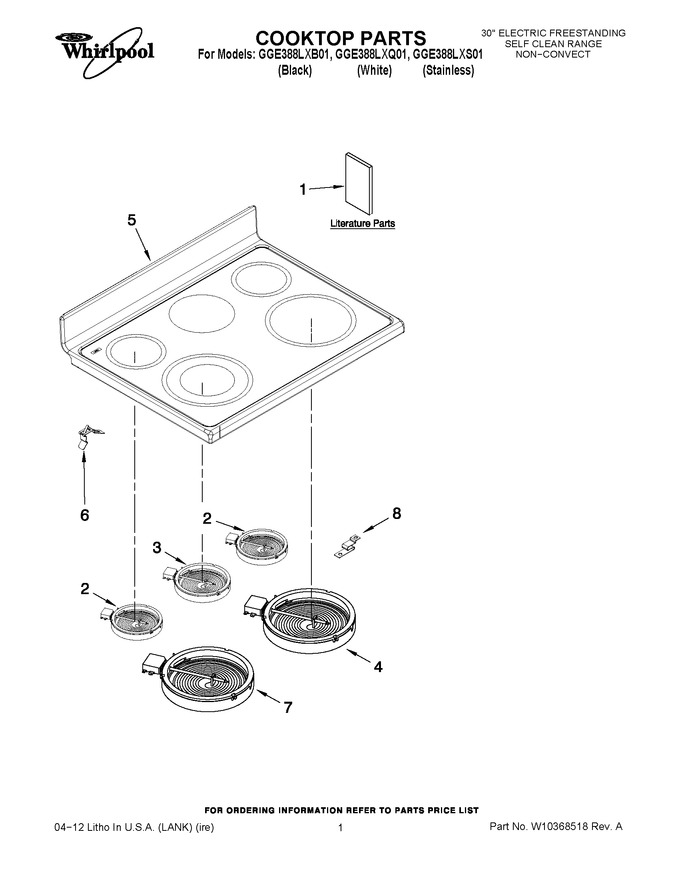

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Upper Door Parts
05 - Lower Door Parts
06 - Rack And Element Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10291450 | Owners Manual |
|
- | |||||
| 1 | W10311742 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Tips, Brochure Safe Cooking |
|
- | |||||
| 1 | W10289536 | Installation Instructions |
|
- | |||||
| 2 | W11171119 | 1200w, Lr/rr (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 3 | WP9762851 | Element, Warm Zone (120v) (Replaces: 9762851) |
|
Immediately | $ 276.53 | ||||
| 4 | W11047722 | 2500w, Rf (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 5 | W10336323 | Cooktop (black) (Replaces: W10260138) |
|
- | |||||
| 5 | W10336324 | Cooktop (white) (Replaces: W10260139) |
|
$ 486.82 | |||||
| 6 | WPW10225448 | Spring-element,push-in (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | W11517959 | 3000/1400w, Lf (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 8 | WPW10260946 | Support, Element (Replaces: W10260946) |
|
$ 128.67 |
