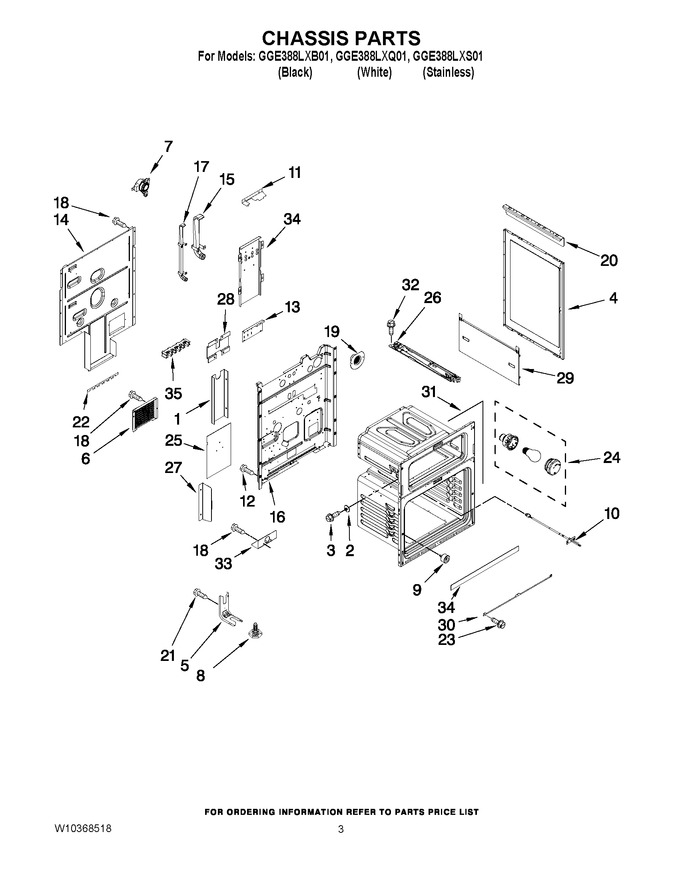

03 - Chassis Parts


04 - Upper Door Parts


05 - Lower Door Parts


06 - Rack And Element Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10332459		Shield, Heat		Appelez-nous	-
2	WPW10237689		Spacer, Side Panel   (Replaces: W10237689)				$ 83.82
3	WPW10267456		Screw, Shoulder   (Replaces: W10267456)				$ 8.06
4	W10260942		Panel, Side (black (2))		Appelez-nous	-
4	WPW10330376		Panel, Side (white (2))   (Replaces: W10260943)				$ 217.83
5	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
6	W10312612		Cover, Access (terminal Block)   (Replaces: W10315657)				$ 129.42
7	WP7403P899-60		Switch, Hi-limit (170 F/280 F)   (Replaces: 7403P899-60)			Immediately	$ 211.50
8	W11665456		Foot, Leveler (4)   (Replaces: 7101P507-60)			Immediately	$ 29.52
9	W10105790		Screw, Bumper				$ 7.41
10	WP7430P044-60		Probe, Sensor   (Replaces: 7430P044-60)			Immediately	$ 175.94
11	W10268559		Cover, Lower Wire		Appelez-nous	-
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
13	W10332449		Shield, Cord				$ 73.40
14	WPW10261386		Cover, Main Wire   (Replaces: W10261386)				$ 194.70
15	W10337391		Tube, Vent (upper)				$ 72.26
16	W10668730		Back, Main   (Replaces: W10260583)			Immediately	$ 228.74
17	WPW10323793		Tube, Vent (lower)   (Replaces: W10323793)				$ 114.85
18	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
19	W10322408		Adapter (vent Tube)				$ 129.03
20	W10319087		Bracket, End Post Support				$ 83.10
21	WP7101P485-60		Screw   (Replaces: 7101P485-60)				$ 30.72
22	8036P012-60		Shield, Pwr Cord				$ 36.44
23	WP98008545		Screw   (Replaces: 7101P633-60)				$ 18.60
24	W10323374		Assembly, Light				$ 44.40
25	W10311987		Shield, Cord (rh)		Appelez-nous	-
26	W10883049		Lock, Door   (Replaces: W10341088)			Immediately	$ 306.46
27	W10268560		Cover, Wire Lower Rh				$ 73.05
28	7003P104-60		Insulator,heat Shield		Appelez-nous	-
29	WPW10253471		Shield, Side Insul   (Replaces: W10253471)				$ 159.64
30	W10299886		Trim, Kickplate				$ 88.08
31	W10337392		Gasket, Oven Door (upper)			Immediately	$ 156.70
31	WPW10269069		Gasket, Oven Door (lower)   (Replaces: W10269069)			Immediately	$ 190.80
32	74003975		Screw (door Lock)   (Replaces: 7101P375-60)				$ 14.03
33	W10190166		Bracket, Pwr Sply				$ 9.70
34	W10261388		Bracket, Terminal				$ 73.34
35	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)			Immediately	$ 35.17
NI	W10308393		Insulation, Upper (wrapper)				$ 78.00
NI	WPW10271637		Insulation, Floor   (Replaces: W10271637)				$ 111.48
NI	WPW10322111		Insulation, Upper (back (full Length))   (Replaces: W10322111)				$ 139.60
NI	WPW10204079		Insulation, Lower (middle)   (Replaces: W10204079)				$ 118.72
NI	W11685361		Insulation, Lower (main Front Strip)   (Replaces: W10204085)				$ 35.54
