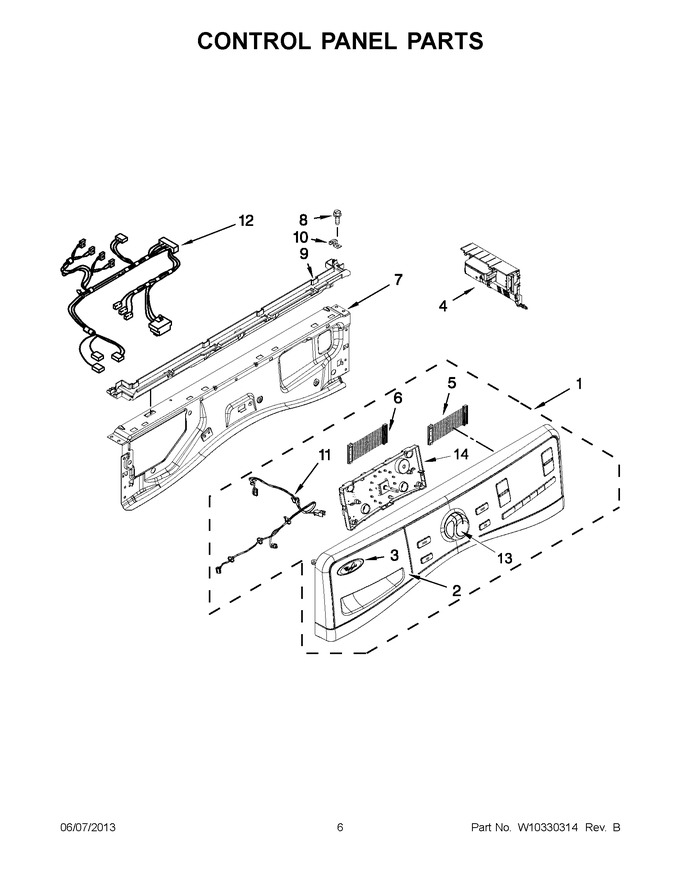

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10348307 | Console Asssembly (white) |
|
- | |||||
| 1 | W10348311 | Console Asssembly (red) |
|
- | |||||
| 1 | W10348310 | Console Asssembly (silver) |
|
- | |||||
| 2 | W10327021 | Handle, Dispenser Drawer (includes Badge) (silver) |
|
$ 78.30 | |||||
| 2 | W10316367 | Handle, Dispenser Drawer (includes Badge) (red) |
|
- | |||||
| 2 | W10299862 | Handle, Dispenser Drawer (includes Badge) (white) |
|
$ 60.61 | |||||
| 3 | W10117943 | Badge, Whirlpool |
|
- | |||||
| 4 | W10354087 | Control Unit, Central |
|
- | |||||
| 5 | W10267937 | Harness, Jumper |
|
- | |||||
| 6 | W10267938 | Harness, Jumper Ui |
|
- | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 166.23 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.83 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 86.61 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.72 | |||||
| 11 | W10271988 | Harness, Main Ui |
|
$ 241.44 | |||||
| 12 | W10271981 | Harness, Wiring (upper Main) |
|
$ 167.52 | |||||
| 13 | WPW10251394 | Assembly, Control Knob (chrome) (Replaces: W10251394) |
|
$ 53.28 | |||||
| 14 | W10267953 | Ui, Center (includes Knob) |
|
- |
