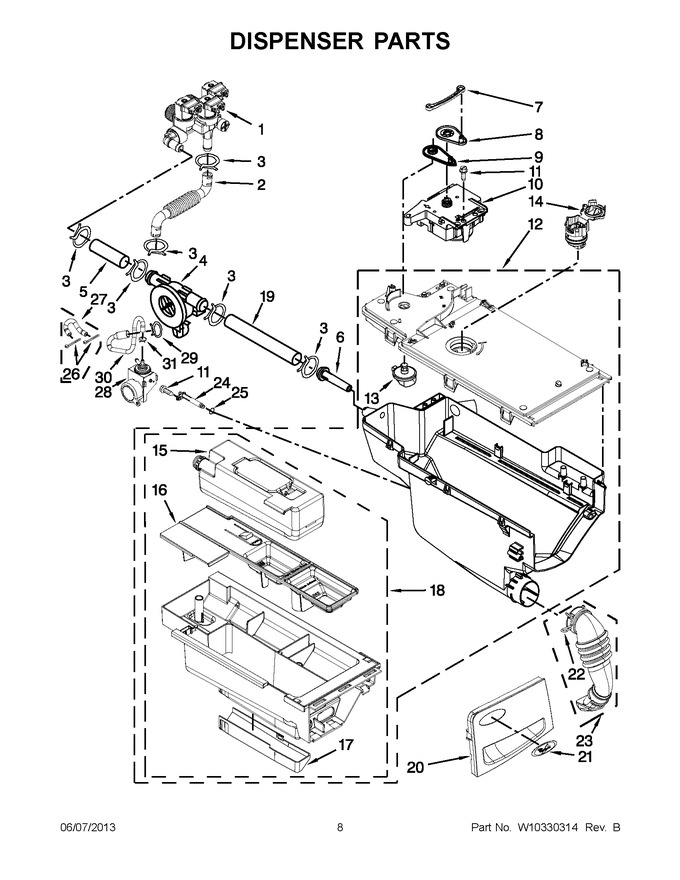

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10247306 | Valve, Inlet (Replaces: W10247306) |
|
Immediately | $ 167.78 | ||||
| 2 | W10239949 | Hose, Inlet Valve To Active Vent |
|
$ 43.27 | |||||
| 3 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.40 | ||||
| 4 | WPW10110225 | Flowmeter (Replaces: 8181696) |
|
Immediately | $ 109.03 | ||||
| 5 | W10538825 | Hose, Inlet Valve To Flowmeter (Replaces: W10239935) |
|
$ 25.83 | |||||
| 6 | WP8183181 | Nozzle, Inlet (Replaces: 8183181) |
|
$ 90.30 | |||||
| 7 | WP8183183 | Lever, Connection (Replaces: 8183183) |
|
$ 90.23 | |||||
| 8 | WP8183184 | Cam, Actuator (Replaces: W10003190) |
|
$ 90.23 | |||||
| 9 | W10183517 | Lever, Water Distribution |
|
$ 9.94 | |||||
| 10 | WPW10352973 | Actuator (Replaces: W10163975) |
|
Immediately | $ 134.69 | ||||
| 11 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 11.56 | |||||
| 12 | W10327072 | Housing, Minibulk Dispenser Assembly |
|
- | |||||
| 13 | WP8181712 | Nozzle, Distribution (Replaces: W10003110) |
|
$ 89.11 | |||||
| 14 | WPW10306690 | Sensor-magnetic, Angular (Replaces: W10306690) |
|
Immediately | $ 71.79 | ||||
| 15 | W10250743A | Dispenser, Minibulk Cartridge (Replaces: W10250743) |
|
Immediately | $ 66.49 | ||||
| 16 | W10256661 | Siphon, Bleach/softene |
|
$ 116.94 | |||||
| 17 | W10003140 | Cover, Detergent Drawer |
|
$ 85.63 | |||||
| 18 | WPW10250742 | Drawer, Detergent (complete) (Replaces: W10250742) |
|
$ 196.55 | |||||
| 19 | W10538827 | Hose, Flowmeter To Dispenser (Replaces: W10239936) |
|
$ 26.99 | |||||
| 20 | W10316367 | Handle, Drawer (includes Item 21) (red) |
|
- | |||||
| 20 | W10327021 | Handle, Drawer (includes Item 21) (silver) |
|
$ 78.30 | |||||
| 20 | W10299862 | Handle, Drawer (includes Item 21) (white) |
|
$ 60.61 | |||||
| 21 | W10117943 | Badge, Whirlpool |
|
- | |||||
| 22 | W10239910 | Clamp, Hose |
|
Immediately | $ 59.43 | ||||
| 23 | WPW10239966 | Hose, Dispenser To Bellow (Replaces: W10239966) |
|
$ 82.95 | |||||
| 24 | W10250730 | Tube, Siphon- Dock-minibulk |
|
$ 16.81 | |||||
| 25 | W10250731 | O-ring |
|
$ 73.03 | |||||
| 26 | WPW10334336 | Tie, Cable (Replaces: W10334336) |
|
$ 6.39 | |||||
| 27 | W10268381 | Hose, Tube To Pump |
|
$ 27.49 | |||||
| 28 | W10842325 | Pump, Metering (Replaces: W10250734) |
|
Immediately | $ 379.71 | ||||
| 29 | WP596669 | Clamp, Hose (Replaces: W10096851) |
|
Immediately | $ 8.40 | ||||
| 30 | W10268382 | Hose, Pump To Dispenser |
|
$ 76.00 | |||||
| 31 | W10292700 | Clamp, Hose |
|
- |
