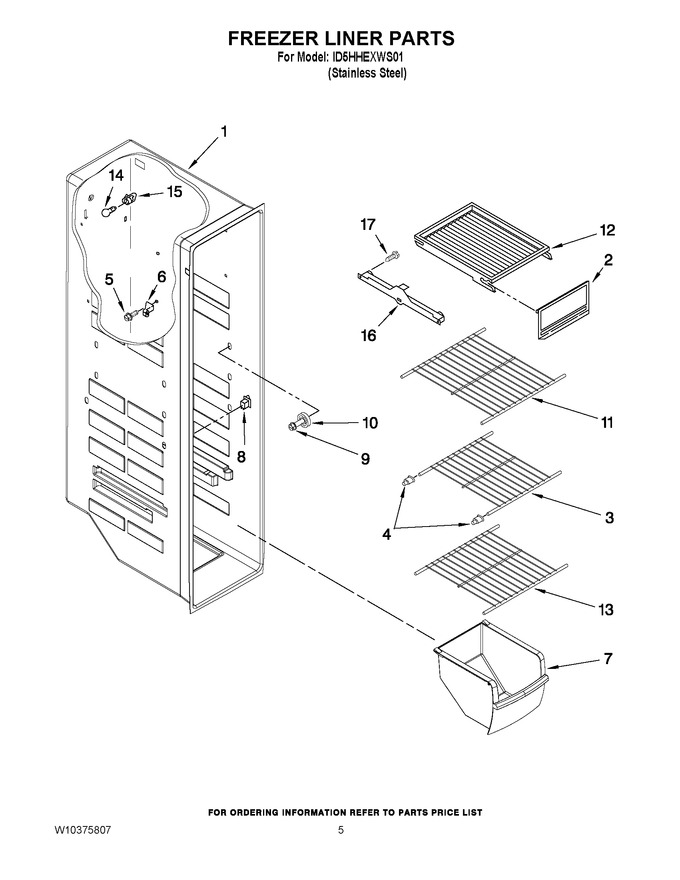

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 91.63
3	WPW10318948		Shelf, Wire   (Replaces: W10318948)				$ 155.23
4	WPW10130299		Cup, Shelf Mount.   (Replaces: W10130299)			Immediately	$ 14.70
5	W10142289		Screw   (Replaces: 3400893)				$ 9.61
6	2196206		Support, Stud (4)		Appelez-nous	-
7	W11577967		Freezer Bin   (Replaces: 2309757)				$ 96.30
8	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
9	W10191952		Screw (4)				$ 5.65
10	W11527119		Stud Assembly (4)   (Replaces: W10173127)		Appelez-nous	-
11	W10318946		Shelf, Wire				$ 37.05
12	2171714		Shelf, Top Compartment		Appelez-nous	-
13	WPW10318947		Shelf, Wire   (Replaces: W10318947)				$ 91.81
14	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
15	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
16	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
16	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
17	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
