SELECT A DIAGRAM
New Model Search:

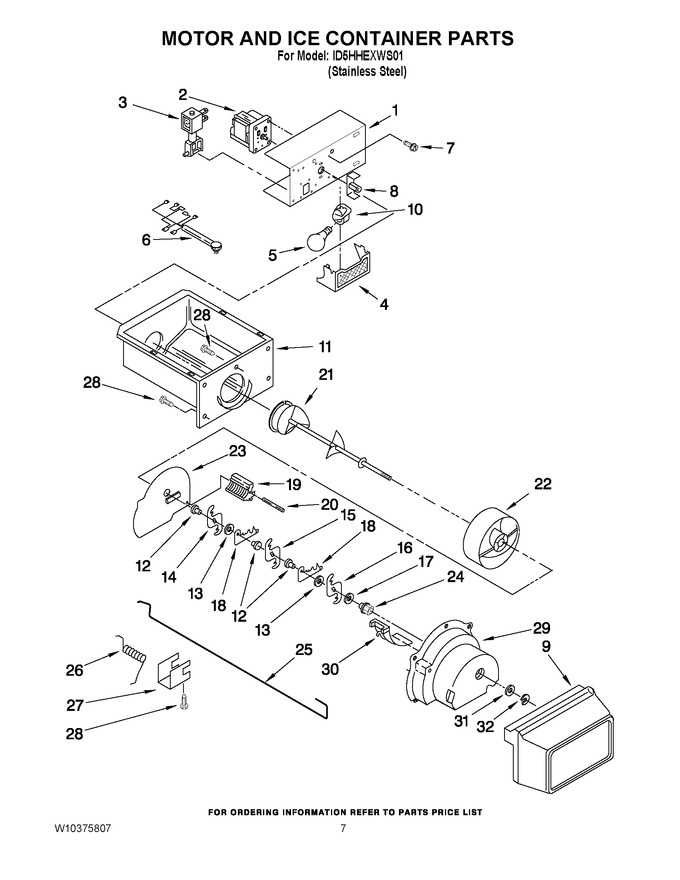

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10304376 | Bracket, Motor |
|
$ 122.01 | |||||
| 2 | W11671282 | Motor, Dispenser (Replaces: W10181208) |
|
Immediately | $ 110.51 | ||||
| 3 | WP2152713 | Soleniod Assembly (Replaces: 2152713) |
|
$ 238.20 | |||||
| 4 | WP2171706 | Light Lens, Dispenser (Replaces: 2171706) |
|
$ 91.34 | |||||
| 5 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 6 | 2311639 | Wiring Assembly, Ice Dispenser (Replaces: W10281336) |
|
$ 147.17 | |||||
| 7 | WP489399 | Screw (6) (Replaces: 489399) |
|
$ 6.95 | |||||
| 8 | WPW10169511 | Coupling, Motor (Replaces: W10169511) |
|
$ 23.34 | |||||
| 9 | 2204321 | Front Cover, Ice Container |
|
- | |||||
| 10 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 11 | WPW10670845 | Ice Container (Replaces: 2196091) |
|
$ 189.70 | |||||
| 12 | WP1119005 | Spacer, Step (3) (Replaces: 1119005) |
|
$ 11.18 | |||||
| 13 | WP1119007 | Spacer, Flat (2) (Replaces: 1119007) |
|
$ 14.07 | |||||
| 14 | W10278731 | Blade, Rotary A |
|
$ 86.54 | |||||
| 15 | W10278732 | Blade, Rotary B |
|
$ 86.67 | |||||
| 16 | W10278733 | Blade, Rotary C |
|
$ 86.67 | |||||
| 17 | 489235 | Washer, Plain |
|
$ 8.05 | |||||
| 18 | W10278731 | Blade, Fixed (2) |
|
$ 86.54 | |||||
| 19 | 2157405 | Block, Blade |
|
$ 22.33 | |||||
| 20 | 489229 | Roll Pin |
|
$ 48.47 | |||||
| 21 | WPW10295082 | Auger (Replaces: W10295082) |
|
$ 163.44 | |||||
| 22 | 4388736 | Drum (Replaces: 2305377) |
|
$ 96.97 | |||||
| 23 | W10852691 | Floating Baffle (Replaces: 2171682) |
|
Immediately | $ 33.19 | ||||
| 24 | WP1119018 | Nut, Bearing (Replaces: 1119018) |
|
$ 7.52 | |||||
| 25 | W11596045 | Control Arm (Replaces: 2155231) |
|
$ 33.82 | |||||
| 26 | 1119020 | Spring, Return |
|
$ 19.13 | |||||
| 27 | 1119021 | Retainer Clip, Rod |
|
$ 10.96 | |||||
| 28 | WP488787 | Screw (Replaces: 488886) |
|
$ 10.58 | |||||
| 29 | WPW10185018 | Housing, Crusher (Replaces: 2180348) |
|
$ 124.43 | |||||
| 30 | WP1119017 | Deflector, Ice (Replaces: 1119017) |
|
$ 7.57 | |||||
| 31 | 489234 | Washer, Plain |
|
$ 14.04 | |||||
| 32 | WP489236 | Retainer Ring (Replaces: 489236) |
|
Immediately | $ 12.17 | ||||
| 100 | WPW10312300 | Ice Container (complete) (Replaces: W10312300) |
|
$ 369.61 |
