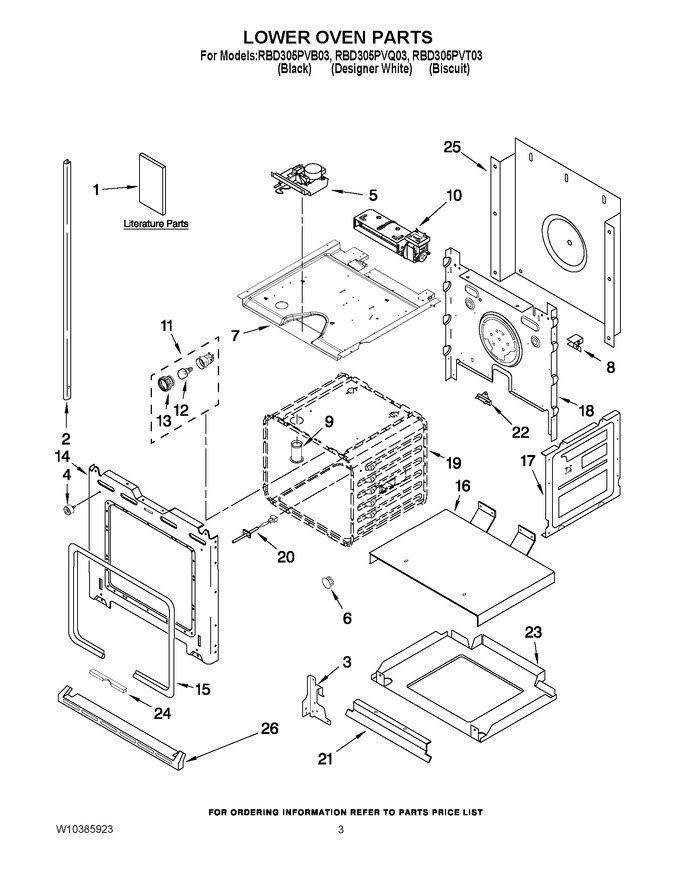

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
2	W10339504		Trim, Side Left (biscuit)		Appelez-nous	-
2	W10339499		Trim, Side Right (black)				$ 90.94
2	W10339501		Trim, Side Right (white)				$ 93.26
2	W10339503		Trim, Side Right (biscuit)		Appelez-nous	-
2	WPW10339500		Trim, Side Left (black)   (Replaces: W10339500)				$ 204.80
2	WPW10339502		Trim, Side Left (white)   (Replaces: W10339502)				$ 128.76
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door				$ 7.41
5	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 288.66
6	4450935		Plug, Door		Appelez-nous	-
7	8303099		Top Chassis				$ 70.97
8	4449845		Support, Bracket		Appelez-nous	-
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452159)				$ 122.46
10	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
10	4451664		Assembly, Fan		Appelez-nous	-
11	WPW10734065		Assembly, Oven Light   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	W10067870		Lens, Light				$ 65.50
13	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
14	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 351.89
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
15	W10203265		Gasket, Door				$ 96.90
16	4451478		Support, Insulation				$ 54.10
17	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
17	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
18	W10161110		Back, Chassis		Appelez-nous	-
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
19	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
20	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
20	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
21	9760677		Deflector, Vent				$ 155.46
22	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
22	WP4451354		Fuse - Thermal   (Replaces: 4451354)				$ 45.50
23	9759713		Base, Chassis				$ 100.19
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
24	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
25	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
26	WPW10207689		Trim, Bottom Vent (white)   (Replaces: W10207690)				$ 205.84
26	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
26	WPW10207689		Trim, Bottom Vent (black)   (Replaces: W10207689)				$ 205.84
26	WPW10207689		Trim, Bottom Vent (biscuit)   (Replaces: W10207691)				$ 205.84
NI	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
NI	4450365		Insulation, Back				$ 70.95
