SELECT A DIAGRAM

01 - Upper Oven Parts


02 - Lower Oven Parts


03 - Upper Oven Door Parts


04 - Lower Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts


08 - Optional Parts

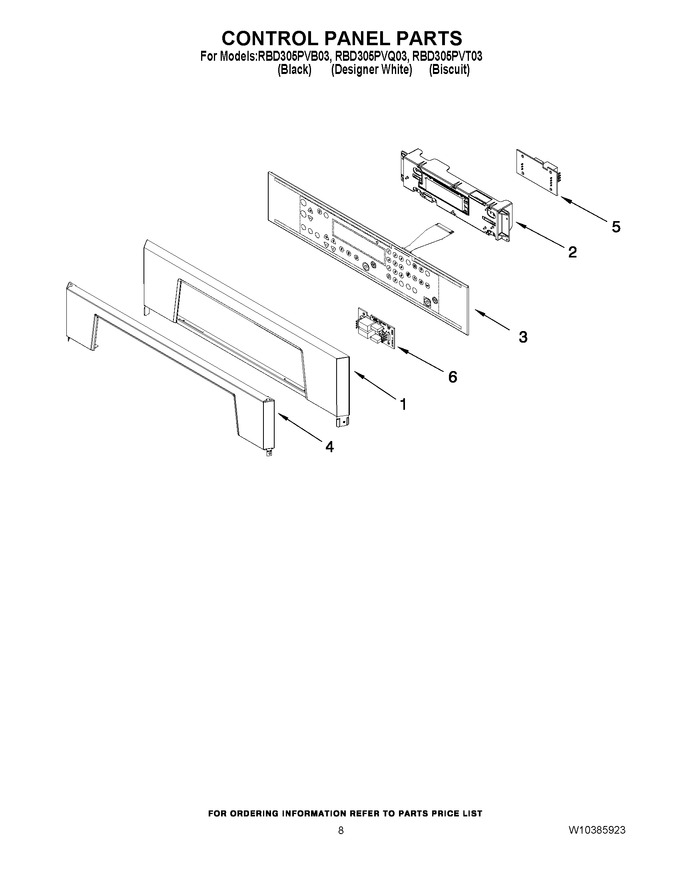

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8302848		Panel, Control (black)   (Replaces: 8302848)				$ 314.81
1	8302849		Panel, Control (white)				$ 117.72
1	8302850		Panel, Control (biscuit)				$ 112.28
2	W10340941		Assembly, Control Enclosure		Appelez-nous	-
3	8304275		Assembly, Membrane (black)		Appelez-nous	-
3	8304276		Assembly, Membrane (white)		Appelez-nous	-
3	8304277		Assembly, Membrane (biscuit)		Appelez-nous	-
4	W10172167		Trim, Control Panel (black)		Appelez-nous	-
4	W10172168		Trim, Control Panel (white)				$ 28.46
4	W10172169		Trim, Control Panel (biscuit)		Appelez-nous	-
5	W10222956		Backer, Control Panel		Appelez-nous	-
6	8301848		Motorized Latch Sister Board				$ 184.23
