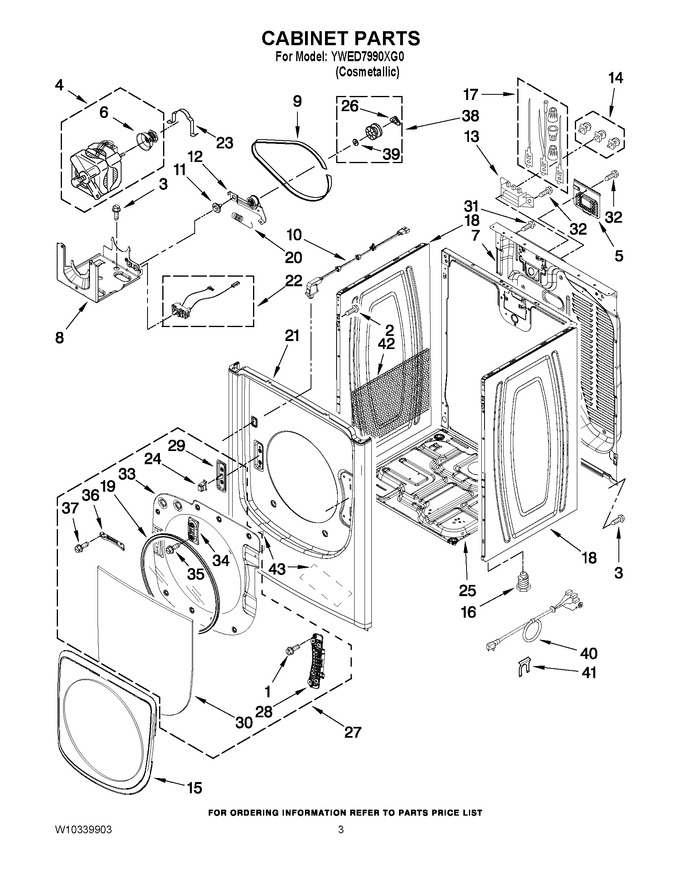

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10301602 | Screw, M5-0.5 X 10 |
|
- | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | 279787 | Motor, Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 246.82 | ||||
| 5 | WPW10316167 | Cover, Terminal Block (Replaces: W10316167) |
|
$ 104.04 | |||||
| 6 | W10837625 | Pulley 60 Hz. (Replaces: 8578220) |
|
Immediately | $ 12.77 | ||||
| 7 | W10285822 | Panel, Rear |
|
- | |||||
| 8 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 9 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 10 | WPW10338189 | Door Switch Assembly (Replaces: W10296342) |
|
$ 83.75 | |||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W10837240 | Pulley Assembly (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 13 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 14 | 279393 | Terminal Block Kit (for Terminal Block ) |
|
Immediately | $ 55.66 | ||||
| 15 | W10285780 | Door Outer Assembly |
|
$ 418.92 | |||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 17 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 39) |
|
Immediately | $ 106.04 | ||||
| 18 | W10285809 | Panel, Side |
|
- | |||||
| 19 | W11310035 | Seal, Glass (Replaces: W10272397) |
|
Immediately | $ 93.76 | ||||
| 20 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 21 | W10285788 | Panel, Front |
|
- | |||||
| 22 | WPW10411937 | Switch Assembly Broken Belt (Replaces: W10246525) |
|
Immediately | $ 36.06 | ||||
| 23 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 24 | W11240283 | Catch, Door Assembly (Replaces: W10208401) |
|
Immediately | $ 28.04 | ||||
| 25 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 26 | WPW10512946 | Tri Ring (Replaces: 690997) |
|
Immediately | $ 9.68 | ||||
| 27 | W10285792 | Door Inner Assembly |
|
- | |||||
| 28 | W10285801 | Hinge, Assembly |
|
- | |||||
| 29 | W10278915 | Strike, Door |
|
$ 30.75 | |||||
| 30 | W11310036 | Window Inner Door (Replaces: W10208417) |
|
$ 224.82 | |||||
| 31 | W10850756 | Screw Ground (Replaces: 8533974) |
|
$ 8.20 | |||||
| 32 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 33 | W10285793 | Door, Inner |
|
- | |||||
| 34 | W10278916 | Bezel, Door Catch |
|
- | |||||
| 35 | W10301601 | Screw |
|
- | |||||
| 36 | W10208252 | Bracket, Door Glass |
|
- | |||||
| 37 | W10317717 | Screw |
|
- | |||||
| 38 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 39 | WPW10121334 | Washer, Thrust (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 40 | W11095079 | Power Cord (Replaces: 8529008) |
|
Immediately | $ 138.24 | ||||
| 41 | W11712577 | Strain Relief Clip (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 42 | W10123956 | Dampening Panel (side Panels) |
|
- | |||||
| 43 | W10123957 | Dapening Panels (front Panel) |
|
- | |||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
