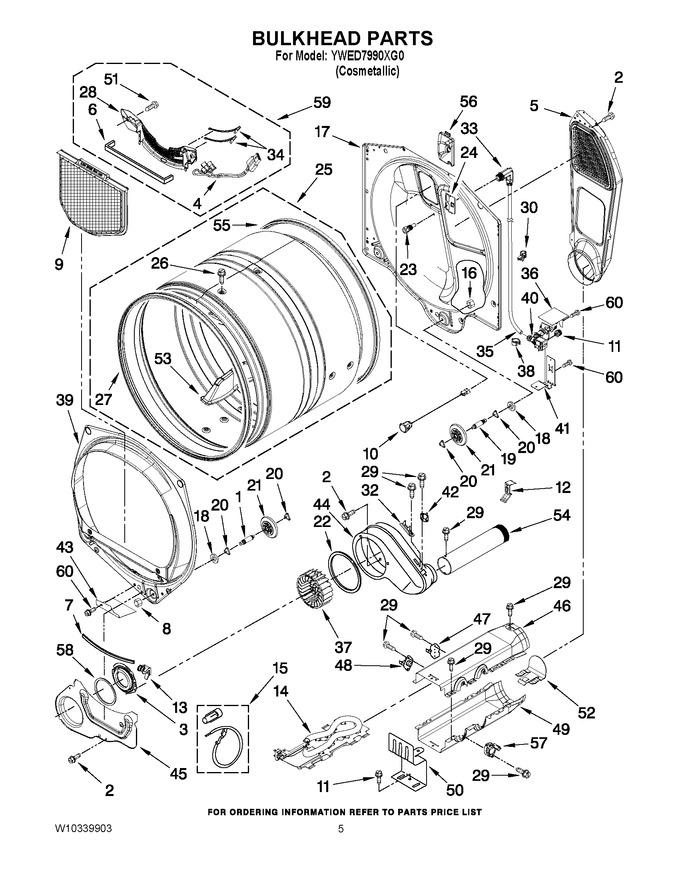

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | W10211901 | Colar, Lint Duct |
|
$ 94.08 | |||||
| 4 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 327.31 | |||||
| 6 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 29.03 | ||||
| 7 | WP3387242 | Seal, Drum Felt (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 8 | W11812294 | Nut,3/8 X 16(r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | W11758174 | Lint, Screen (Replaces: W10211906) |
|
Immediately | $ 53.90 | ||||
| 10 | W10211948 | Drum Light Assembly |
|
- | |||||
| 11 | W10859554 | Coupling, Hose (Replaces: W10044605) |
|
$ 86.06 | |||||
| 12 | W11684573 | Clip, Exhaust Pipe (Replaces: 8572105) |
|
$ 8.17 | |||||
| 13 | W10414388 | Clip, Lint Duct (Replaces: W10306123) |
|
$ 14.56 | |||||
| 14 | WP8544771 | Heater Element (Replaces: 8544771) |
|
Immediately | $ 136.60 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | W10211946 | Bulkhead, Rear |
|
$ 147.88 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, R.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Tri Ring (Replaces: 690997) |
|
Immediately | $ 9.68 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | W10211933 | Seal, Cover Plate |
|
- | |||||
| 23 | WPW10277503 | Nozzle & Screen Assembly (Replaces: W10277503) |
|
$ 255.65 | |||||
| 24 | W10249422 | Nozzle, Bracket Rear |
|
- | |||||
| 25 | W10541657 | Drum Assembly (complete) (Replaces: W10280779) |
|
Immediately | $ 539.54 | ||||
| 26 | W10853898 | Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | W11193479 | Seal, Drum (Replaces: W10273050) |
|
Immediately | $ 22.62 | ||||
| 28 | W11125442 | Grille, Outlet (Replaces: W10211903) |
|
$ 236.44 | |||||
| 29 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 30 | WP3391018 | Cable-tie (Replaces: 3391018) |
|
$ 33.43 | |||||
| 32 | WP3392519 | Thermal-fuse (91°c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 33 | WPW10347739 | Nozzle & Hose Assembly (include Items, 23,30,35 & 56 ) (Replaces: W10249460) |
|
$ 301.77 | |||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.94 | ||||
| 35 | WPW10347739 | Hose, (not Servicable Included With Item. 33 ) (Replaces: W10249459) |
|
$ 301.77 | |||||
| 36 | W10815373 | Cover, Inlet Valve (Replaces: W10184825) |
|
Immediately | $ 152.37 | ||||
| 37 | WP697772 | Wheel, Blower (Replaces: W10211915) |
|
Immediately | $ 81.98 | ||||
| 38 | W10044599 | Clip, Push-to-connect (Replaces: W10044615) |
|
$ 15.00 | |||||
| 39 | W10673491 | Bulkhead, Front Door Screen (Replaces: W10211930) |
|
Immediately | $ 362.00 | ||||
| 40 | W10815373 | Valve,water Inlet (includes Items, 11,36,41 & 60 ) (Replaces: W10276441) |
|
Immediately | $ 152.37 | ||||
| 41 | W10276440 | Bracket-valve |
|
- | |||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 43 | W11257251 | Shield, Blower Housing (Replaces: W10128629) |
|
$ 72.06 | |||||
| 44 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 149.69 | ||||
| 45 | WPW10211896 | Lint Duct Assembly (Replaces: W10211896) |
|
$ 219.70 | |||||
| 46 | WP8544769 | Housing-slot Heater Box (Replaces: 8544769) |
|
$ 173.90 | |||||
| 47 | 279973 | Thermal Cut-off (include, Item. 48 ) (Replaces: 8318314) |
|
Immediately | $ 75.60 | ||||
| 48 | 280148 | Thermostat 295°f (215°c) High Limit |
|
Immediately | $ 67.61 | ||||
| 49 | 8544770 | Housing-tab Heater Box |
|
$ 75.92 | |||||
| 50 | 8066099 | Bracket, Heater Box |
|
$ 26.81 | |||||
| 51 | WP3387230 | Screw, 10-16 X 1 (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 52 | 8544776 | Flange-heater Box |
|
$ 19.01 | |||||
| 53 | W10280771 | Baffle, Drum |
|
Immediately | $ 115.32 | ||||
| 54 | 279936 | Pipe-exhaust (Replaces: 8563745) |
|
$ 154.18 | |||||
| 55 | 280114 | Seal-drum Felt (Replaces: 697694) |
|
Immediately | $ 70.82 | ||||
| 56 | WPW10208422 | Rear Deflector (Replaces: W10208422) |
|
$ 96.82 | |||||
| 57 | WP8557403 | Inlet Thermistor High Limit Stat (Replaces: 8557403) |
|
Immediately | $ 95.44 | ||||
| 58 | W11821372 | Seal-collar Blower (Replaces: W10211899) |
|
$ 22.39 | |||||
| 59 | W10906551 | Outlet Grill & Housing Assembly (Replaces: W10211902) |
|
Immediately | $ 335.53 | ||||
| 60 | WP90767 | Screw, 8-18 X 1/2 (Replaces: 90767) |
|
Immediately | $ 8.25 |
