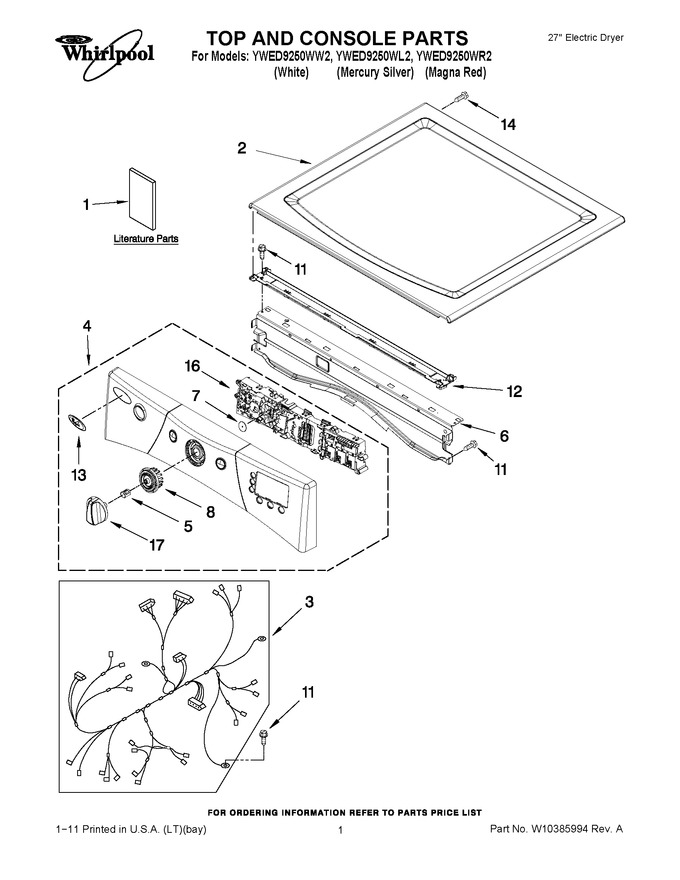

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10240872		Use & Care Guide		Appelez-nous	-
1	W10340328		Tech Sheet		Appelez-nous	-
1	W10240584		Installation, Instruction		Appelez-nous	-
2	WPW10336080		Top (white)   (Replaces: W10336080)				$ 331.99
2	WPW10336091		Top (mercury Silver)   (Replaces: W10336091)				$ 324.93
2	W10336090		Top (magna Red)				$ 121.81
3	W10251444		Harness, Main				$ 76.79
4	W10329848		Panel, Console (includes, Item. 13 ) (mercury Silver)		Appelez-nous	-
4	W10329847		Panel, Console (includes, Item. 13 ) (white)		Appelez-nous	-
4	W10329849		Panel, Console (includes, Item. 13 ) (magna Red)		Appelez-nous	-
5	W10153920		Spring, Knob		Appelez-nous	-
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	8572039		Seal, User Interface		Appelez-nous	-
8	W10237301		Cycle, Light Guide		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	WPW10266747		Chanel, Water   (Replaces: W10266747)				$ 73.96
13	W10117943		Badge Assembly		Appelez-nous	-
14	3400238		Screw, 2-28 X 1/2				$ 12.03
16	WPW10215475		Assembly, User Interface   (Replaces: W10215475)				$ 242.51
17	WPW10247262		Assembly, Knob (silver (for Silver & Red Models ))   (Replaces: W10247262)				$ 56.36
17	WPW10215781		Assembly, Knob (white)   (Replaces: W10215781)				$ 59.12
