View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Top And Console Parts

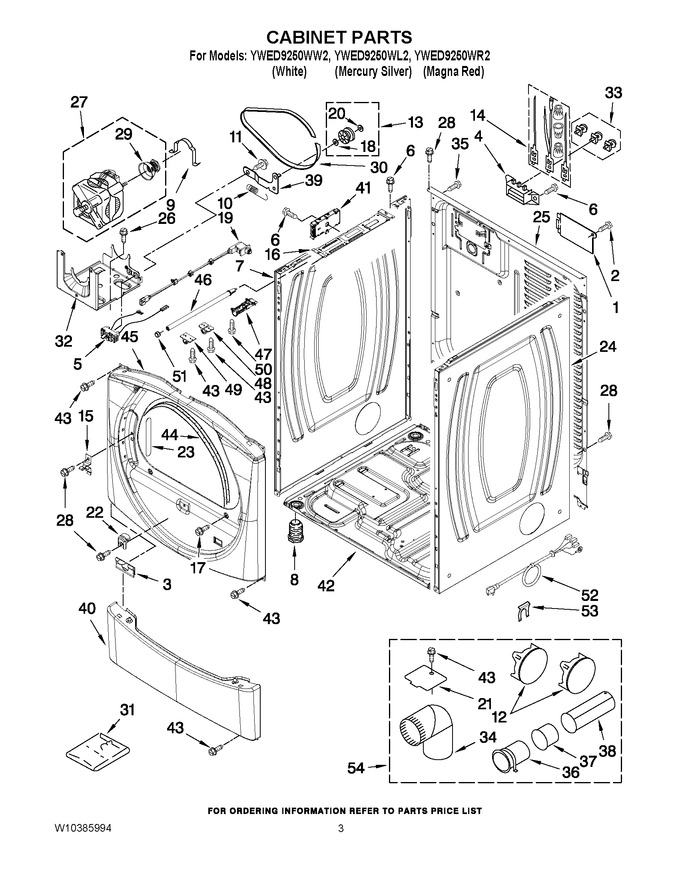

02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 134.77 | |||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10246525) |
|
Immediately | $ 36.06 | ||||
| 6 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 7 | W10251216 | Panel, Side (l.h.) (magna Red) |
|
- | |||||
| 7 | W10542715 | Panel, Side (l.h.) (mercury Silver) (Replaces: W10251218) |
|
$ 317.99 | |||||
| 7 | W10542714 | Panel, Side (l.h.) (white) (Replaces: 8565054) |
|
$ 350.58 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (white) (Replaces: 49252) |
|
$ 75.58 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (3) (includes Illus. 33) |
|
Immediately | $ 106.04 | ||||
| 15 | WP8565122 | Strike, Door (Replaces: 8565122) |
|
Immediately | $ 8.65 | ||||
| 16 | W10103443 | Bracket, Control Pogo |
|
- | |||||
| 17 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 18 | WPW10121334 | Washer, Thrust (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 19 | W10318609 | Switch, Assembly Door |
|
$ 75.64 | |||||
| 20 | WPW10512946 | Tri Ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10354249 | Cover-plate (Replaces: 8066115) |
|
$ 9.41 | |||||
| 22 | 8580015 | Ramp, Door |
|
$ 88.24 | |||||
| 23 | W10085210 | Label-hinge Hole Cover Front Panel |
|
$ 85.03 | |||||
| 24 | W10542714 | Panel, Side (r.h.) (white) (Replaces: 8565048) |
|
$ 350.58 | |||||
| 24 | W10542715 | Panel, Side (r.h.) (mercury Silver) (Replaces: W10251219) |
|
$ 317.99 | |||||
| 24 | W10251217 | Panel, Side (r.h.) (magna Red) |
|
- | |||||
| 25 | 8565059 | Panel, Rear |
|
$ 244.90 | |||||
| 26 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 27 | 279787 | Motor, Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 235.65 | ||||
| 28 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 29 | W10837625 | Pulley 60 Hz. (Replaces: 8578220) |
|
Immediately | $ 12.77 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | 8572546 | Kit, Stack Assembly |
|
Immediately | $ 84.63 | ||||
| 32 | W11481730 | Bracket, Motor (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 33 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 34 | WPW10416072 | 4`` - 90° Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 35 | W10850756 | Screw Ground (Replaces: 8533974) |
|
$ 8.20 | |||||
| 36 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | WP8540621 | Toe Panel (white) (Replaces: 8540621) |
|
$ 189.38 | |||||
| 40 | W10251209 | Toe Panel (magna Red) |
|
$ 66.91 | |||||
| 40 | W10251210 | Toe Panel (mercury Silver) |
|
$ 262.43 | |||||
| 41 | W10235613 | Control Board |
|
$ 288.51 | |||||
| 42 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 43 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | W10251204 | Front Panel (includes Illus. 44) (mercury Silver) |
|
$ 120.61 | |||||
| 45 | W10251203 | Front Panel (includes Illus. 44) (magna Red) |
|
- | |||||
| 45 | 8580257 | Front Panel (includes Illus. 44) (white) |
|
$ 124.76 | |||||
| 46 | W10103457 | Pogo Bar Assembly |
|
- | |||||
| 47 | W10101220 | Housing Assembly |
|
- | |||||
| 48 | W10101183 | Bushing-sleeve (stop) |
|
- | |||||
| 49 | W10307561 | Bushing-sleeve (rear) |
|
- | |||||
| 50 | WP488729 | Screw, 8-15 X 3/8 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 51 | W10011740 | End Cap |
|
$ 33.98 | |||||
| 52 | W11095079 | Power Cord (Replaces: 8579325) |
|
Immediately | $ 138.24 | ||||
| 53 | W11712577 | Strain Relief Clip (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| NI | W10331152 | Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey) |
|
- |
